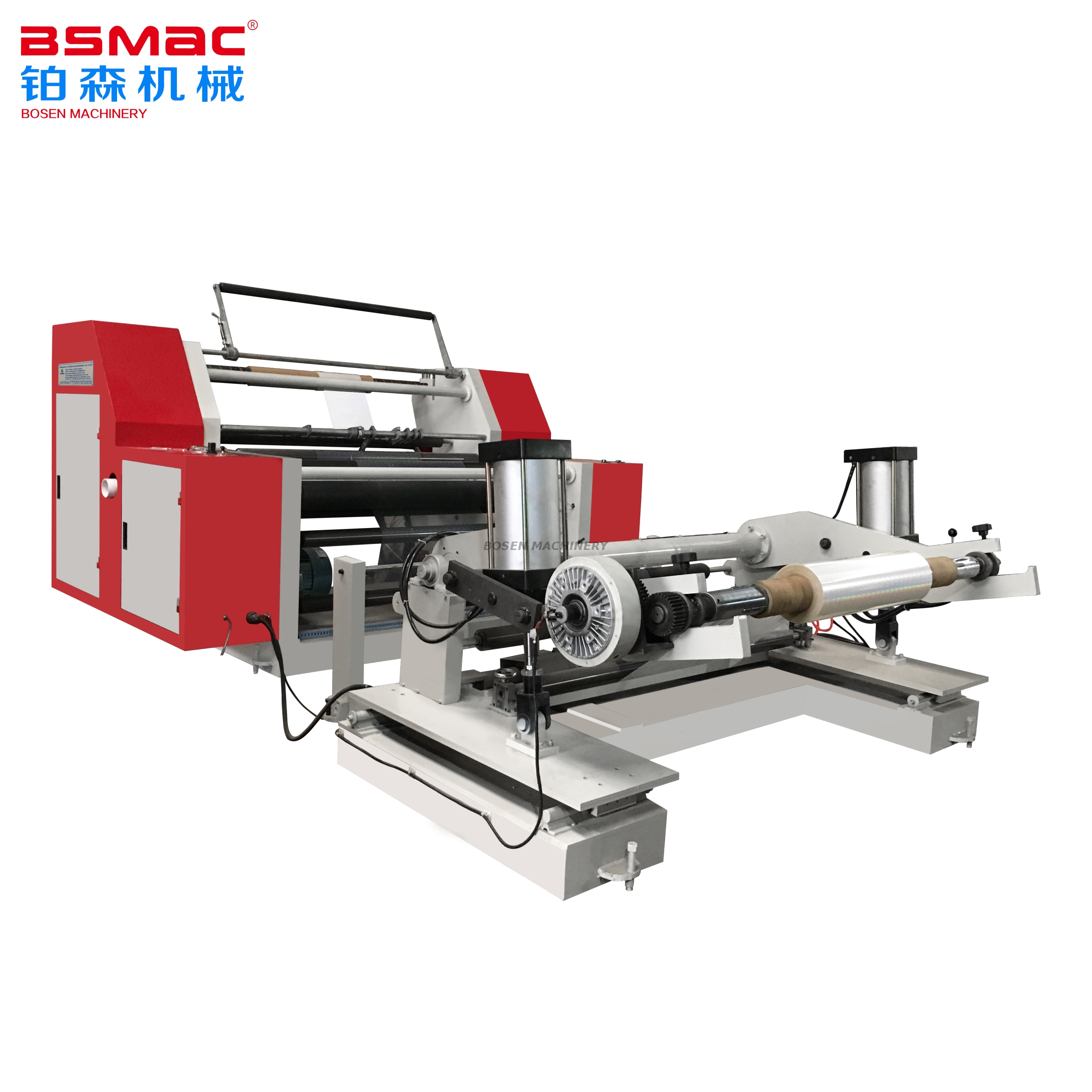

Product Description:
Suitable for BOPP,PVC, PE, adhesive tape, glass paper tape and Kraft paper, cloth tape,etc.
Main Feature:
It integrates advanced mechanical, electric, optical and pneumatic technology and components. This machine has been proved to be of high performance such as high speed, high stability, easy operation and high slitting neatness.
Main Technical Parameters:
The parameters below for reference, we accept customization
| Model | BS HA-700 | BS HA-1100 | BS HA-1300 |
| Width Unwinding | 700mm | 1100mm | 1300mm |
| Unwinder Diameter Roll | 1200mm | 1200mm | 100mm |
| Rewinder Cut Width | 600mm x2 | 600mm x2 | 600mm x2 |
| Slitting Width | 20-700mm | 20-1100mm | 20-1300mm |
| Slitting Speed | 5-200m/min | 5-200m/min | 5-200m/min |
| Motor | 2.7kw | 3kw | 3.5kw |
| Weight | 2000kg | 2500kg | 2800kg |
| Dimension | 1250x2000x1300 mm | 1250x2200x1300 mm | 1250x2400x1300 mm |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
Product Description:
Suitable for BOPP,PVC, PE, adhesive tape, glass paper tape and Kraft paper, cloth tape,etc.
Main Feature:
It integrates advanced mechanical, electric, optical and pneumatic technology and components. This machine has been proved to be of high performance such as high speed, high stability, easy operation and high slitting neatness.
Main Technical Parameters:
The parameters below for reference, we accept customization
| Model | BS HA-700 | BS HA-1100 | BS HA-1300 |
| Width Unwinding | 700mm | 1100mm | 1300mm |
| Unwinder Diameter Roll | 1200mm | 1200mm | 100mm |
| Rewinder Cut Width | 600mm x2 | 600mm x2 | 600mm x2 |
| Slitting Width | 20-700mm | 20-1100mm | 20-1300mm |
| Slitting Speed | 5-200m/min | 5-200m/min | 5-200m/min |
| Motor | 2.7kw | 3kw | 3.5kw |
| Weight | 2000kg | 2500kg | 2800kg |
| Dimension | 1250x2000x1300 mm | 1250x2200x1300 mm | 1250x2400x1300 mm |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
