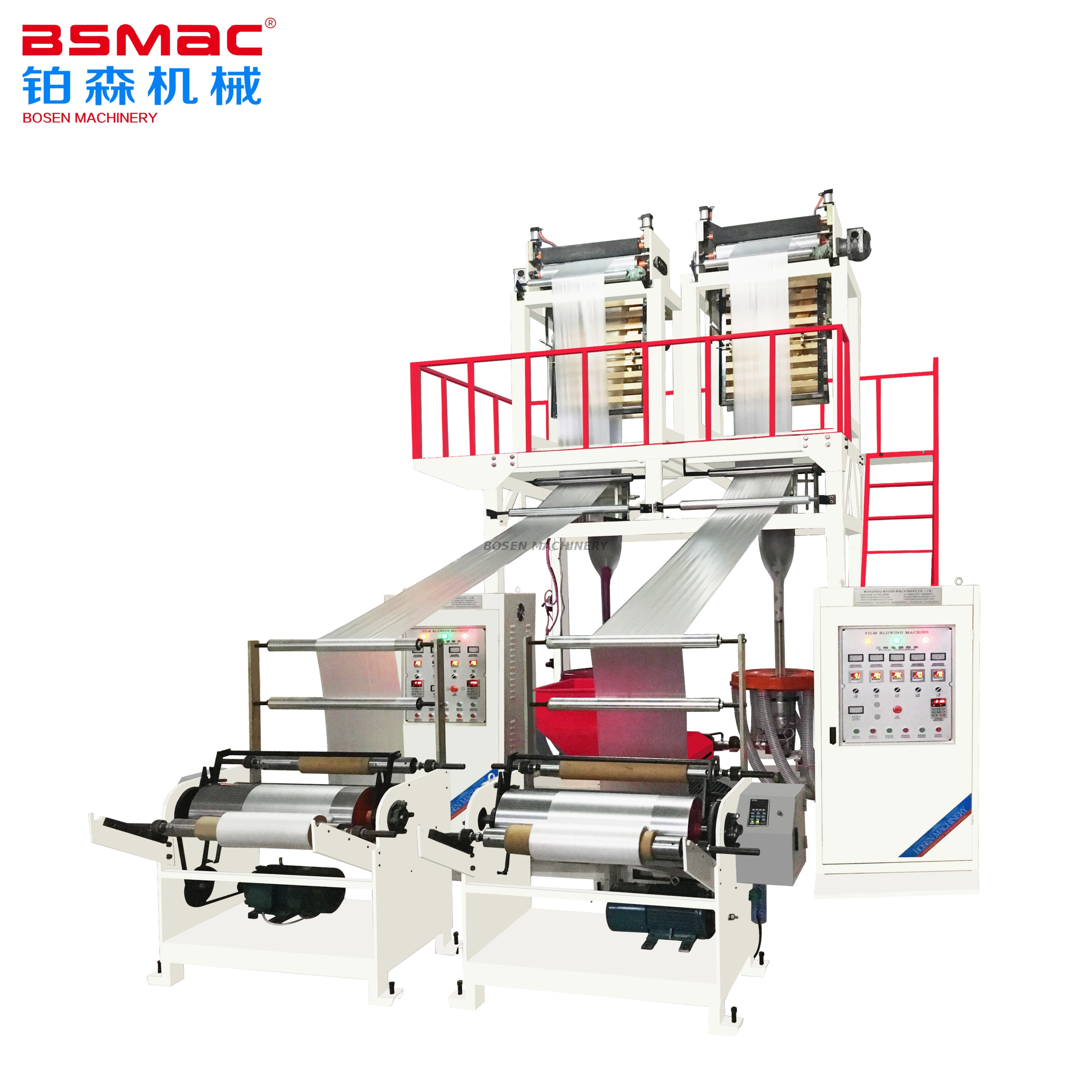

It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect
| Quantity: | |
|---|---|
Product Description:
It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect
Main Feature:
1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%’s energy.
2.both the screw and barrel adopt 38 CrMoAl, with nitrided treatment.
3. One screw could blow two lines bags, It is good for HDPE small size bag blowing.
Main Technical Parameters:
MODEL | BSJ-H2-55 | BSJ-H2-65 |
| Suitable Material | HDPE , LDPE | |
| Max Film Width (mm) | 500x2 | 600x2 |
Film Thickness (mm) | HD:0.008-0.10 LD:0.02-0.15 | |
Max Extursion Output HD | 50kg/h | 70kg/h |
Screw Diameter (mm) | Φ55 | Φ65 |
| Die Size (mm) | HD:Φ50/60X2 | HD:Φ60/80X2 |
Driving Motor (kw) | 22 | 30 |
Cover Dimensions (L×W×H) (m) | 5x3.2x4.3 | 5.5x3.4x4.3 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
Product Description:
It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect
Main Feature:
1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%’s energy.
2.both the screw and barrel adopt 38 CrMoAl, with nitrided treatment.
3. One screw could blow two lines bags, It is good for HDPE small size bag blowing.
Main Technical Parameters:
MODEL | BSJ-H2-55 | BSJ-H2-65 |
| Suitable Material | HDPE , LDPE | |
| Max Film Width (mm) | 500x2 | 600x2 |
Film Thickness (mm) | HD:0.008-0.10 LD:0.02-0.15 | |
Max Extursion Output HD | 50kg/h | 70kg/h |
Screw Diameter (mm) | Φ55 | Φ65 |
| Die Size (mm) | HD:Φ50/60X2 | HD:Φ60/80X2 |
Driving Motor (kw) | 22 | 30 |
Cover Dimensions (L×W×H) (m) | 5x3.2x4.3 | 5.5x3.4x4.3 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
