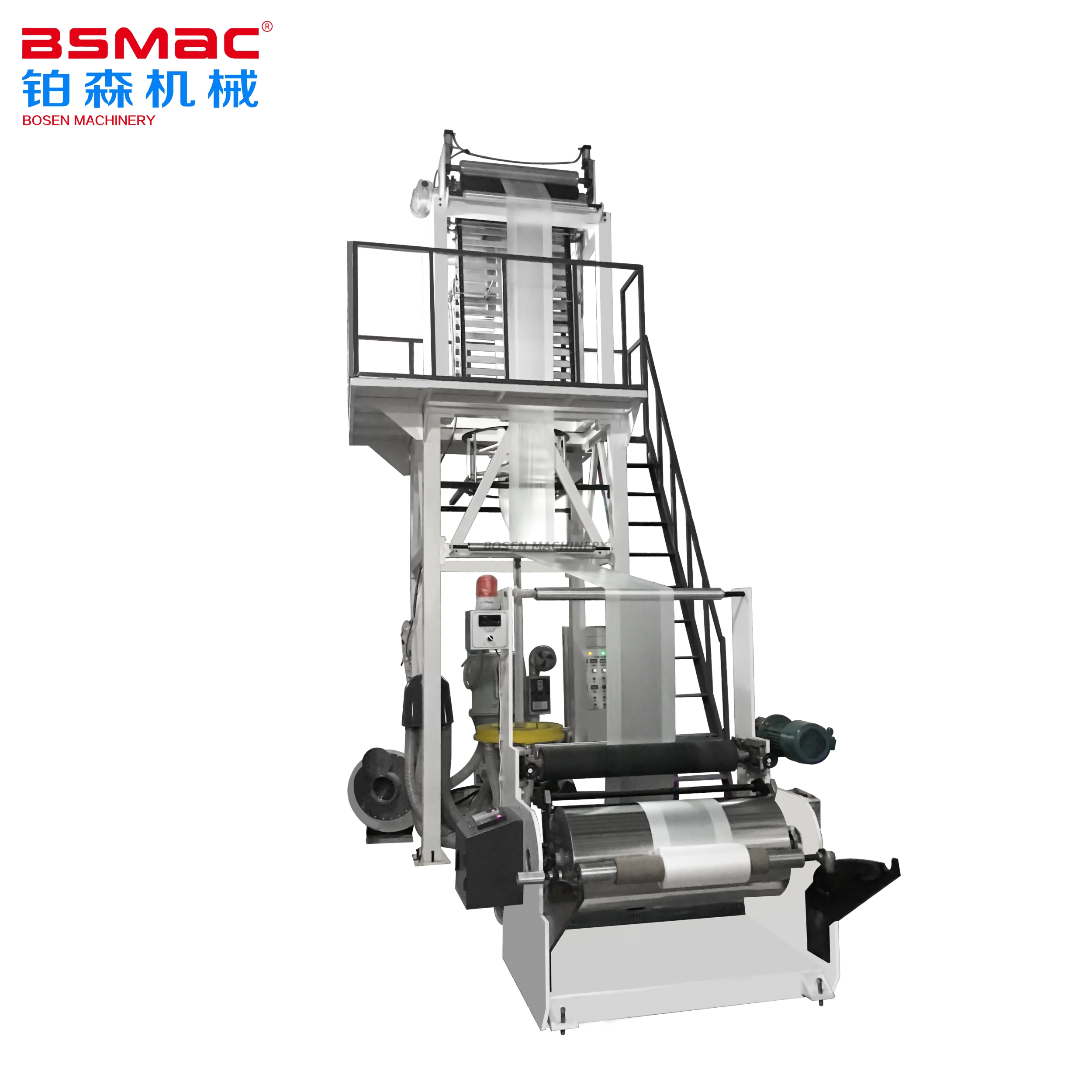

BSJ-50-700 Top Quality Automatic High Speed HDPE LDPE Film Blowing Machine

It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect

Availability:

Quantity:



Inquire Add to Basket

Product Description

It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect

Main Feature:
1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%'s energy.

2.Both the screw and barrel adopt 38CrMoAl, with nitrided treatment.

3.You could choice machine options like printing online,Folding online,sltting online as you like.

We could design machine as you needs.

Model	BSJ-45-500	BSJ-50-700	BSJ-55-900	BSJ-60-1100	BSJ-65-1350	BSJ-75-1700
Max.Layflat Width(mm)	400	600	800	1000	1200	1500
Film Thickness(mm)	0.008-0.15	0.008-0.15	0.008-0.15	0.008-0.25	0.008-0.25	0.008-0.25
Max.Output(kg/h)	20-35	30-45	50-60	60	90	120
Raw Material	HDPE/LLDPE/LDPE/EVA
Screw Diameter(mm)	Φ45	Φ50	Φ55	Φ60	Φ65	Φ75
Screw L/D Ratio L/d	28:1/30:1	28:1/30:1	28:1/30:1	28:1/30:1	28:1/30:1	28:1/30:1
Extruder Driving Power(kw)	5.5-7.5	7.5-11	15-18.5	18.5	22	37-45
Total Power(kw)	≈22	≈25	≈32	≈45	≈50	≈65
Overall Dimensions (L×W×H)M	2.6×1.5×3.8	3.2×1.7×4.2	4.2×1.9×4.5	4.8×2.1×5.8	5.8×2.4×6.5	7×2.7×7.5
Weight(T)	≈1.2	≈1.5	≈2	≈2.5	≈3.2	≈7.5

Blown Film Machine PE Film Extruder Machine PE Bubble Film Making Machine High Speed High Quality Film Blowing Machine (Biodegradable Material) PP Film Blowing Machine Biodegradable Material Film Blowing Machine Film extruder

Focuses on the complete production line of plastic packaging and printing machinery R&D and manufacturing

Relying on innovative technology and rich experience, we have developed paper bag production line, high performance degradable plastic bag production line, green ink printing press production line and various non-woven bag, etc. With continuous r&d investment and experience accumulation, the products of platinum products have been widely recognized by users at home and abroad.
