Product Description:

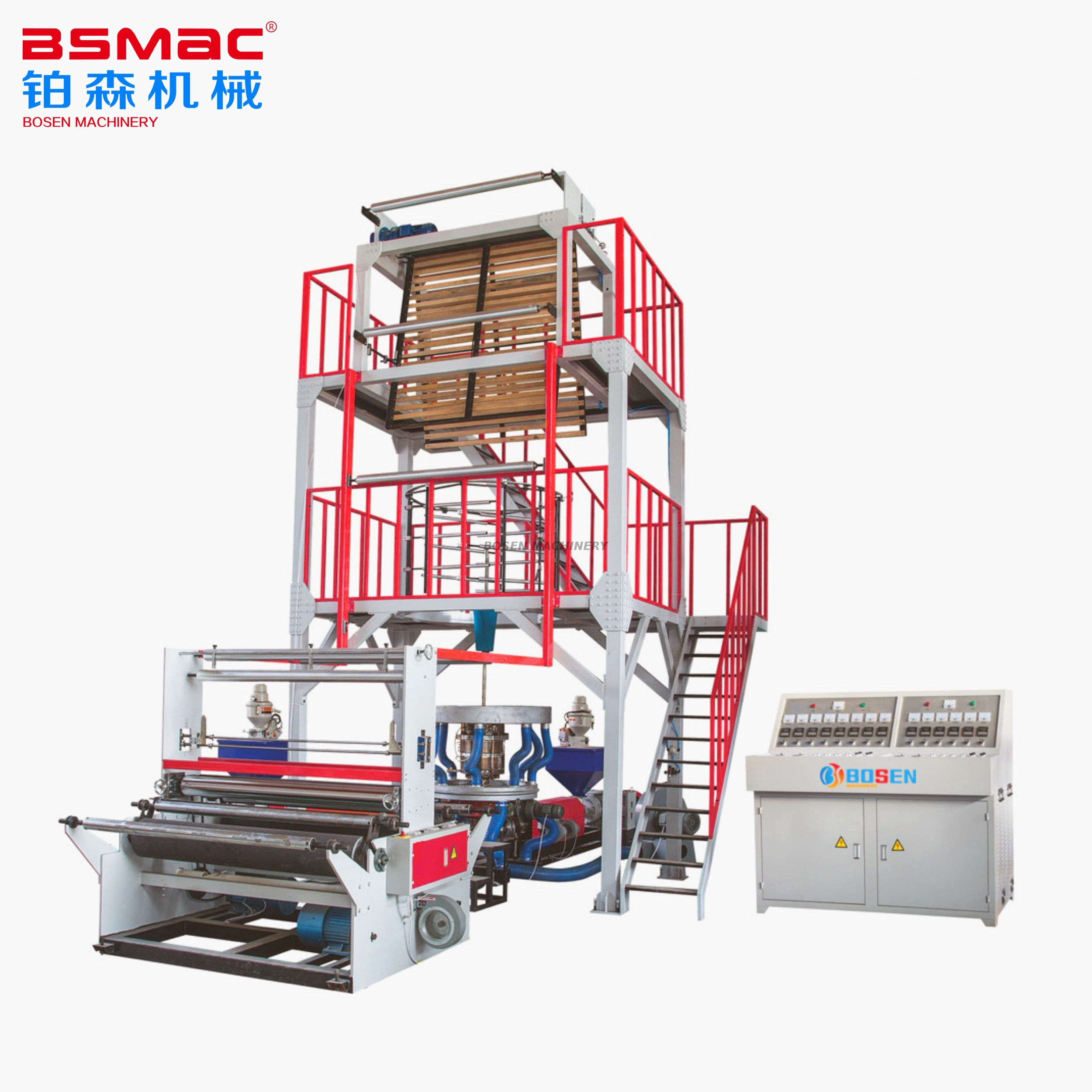

It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect
Main Feature:
1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%'s energy.
2.Both the screw and barrel adopt 38CrMoAl, with nitrided treatment.
3.You could choice machine options like printing online,Folding online,sltting online as you like.We could design machine as you needs.
Main Technical Parameters:
MODEL | BSJ-2L600 | BSJ-2L800 | BSJ-2L1000 | BSJ-2L1200 | BSJ-2L1500 | BSJ-2L2000 |
| Raw Material | LDPE LLDPE HDPE | |||||
| Max.Layflat Width (mm) | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
Film Thickness (mm) | 0.008-0.25 | |||||
Max. Output | 60kg/h | 70kg/h | 80kg/h | 90kg/h | 120kg/h | 140kg/h |
Extruder Driving Power(kw) | 11x2 | 11x2 | 15x2 | 15x2 | 22x2 | 30x2 |
Screw Diameter (mm) | Φ45x2 | Φ50x2 | Φ55x2 | Φ55x2 | Φ65x2 | Φ70x2 |
Die Size (mm) | Φ120 | Φ180 | Φ220 | Φ250 | Φ350 | Φ500 |
Cover Dimensions (L×W×H) (m) | 5.8x2.3x4.5 | 6x2.5x4.8 | 6.200x2.7x5.2 | 6.5x2.9x5.5 | 6.8x3.2x6.2 | 7x3.7x7.5 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
