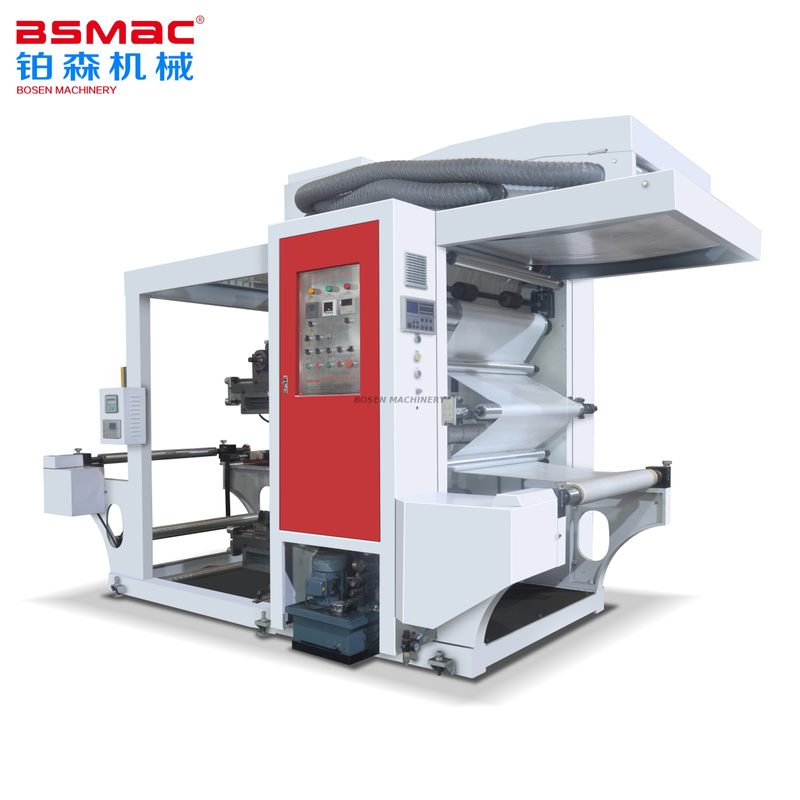

BSHYT2 Series 2 Colors High Speed Flexographic Printing Machine

This machine is a printing machine that uses photosensitive resin soft plate as the plate material, commonly known as "flexographic printing machine", "flexo printing machine", "relief printing machine" and "flexo printing machine". It is suitable for printing polyethylene, polypropylene, cellophane, plastic film (BOPP OPP PE PVC POT, etc.), non-woven fabric, woven bags, paper and other packaging materials. It is flexible packaging for food paper packaging, supermarket tote bags, waistcoat bags, clothing bags, etc. Ideal printing equipment.
Availability:
Quantity:

Application:

This machine is a printing machine that uses photosensitive resin soft plate as the plate material, commonly known as "flexographic printing machine", "flexo printing machine", "relief printing machine" and "flexo printing machine". It is suitable for printing polyethylene, polypropylene, cellophane, plastic film (BOPP OPP PE PVC POT, etc.), non-woven fabric, woven bags, paper and other packaging materials. It is flexible packaging for food paper packaging, supermarket tote bags, waistcoat bags, clothing bags, etc. Ideal printing equipment.



Performance Characteristics:

1. The fuselage adopts 75MM thickened wallboard, and the support bar is increased, the machine is stable.

2. Adopt motor frequency conversion speed regulation, PLC computer system.

3. The ink-feeding motor is automatically stopped after printing, and the ink-feeding device is automatically started when printing.

4. The use of high-precision widened synchronous belt drive, accurate printing size.

5. There is a blowing device, in which the heating uses a central constant temperature control system and group control

6. The printing roller is made of thickened steel roller, and it is plated with thick hard chrome protective layer.

7 Aluminum alloy guide wheels are treated with hard oxidation, dynamic balance and static balance

8 There is a cold air setting bellows, which can effectively prevent defects such as ink adhesion after printing

9. The printed image is clear and the sense of hierarchy is strong, and the still picture is configured.

10. Single or Double winding .



Main Technical Parameters:

The parameters below for reference, we accept customization

ModelBSHYT2-600

BSHYT2-800

BSHYT2-1000BSHYT2-1200

Printing Color Number

2 Colour2 Colour2 Colour2 Colour

Max. Width Of Printing Material

600mm800mm1000mm1200mm
Max. Pringting Width560mm760mm960mm1060mm
Length Range Of Printing product300-900mm300-900mm300-900mm300-900mm
Max. Diameter Of Roll MaterialΦ1000mmΦ1000mmΦ1000mmΦ1000mm
Mechanical Speed150m/min150m/min150m/min150m/min

Max. Printing Speed

130m/min130m/min130m/min130m/min
Total Power20kw22kw24kw26kw

Weight

4000kg4200kg4300kg4500kg
Overall Dimension(L×W×H)3700×2000×2800mm3700×2200×2800mm3700×2400×2800mm3700×2600×2800mm
