Product Description:

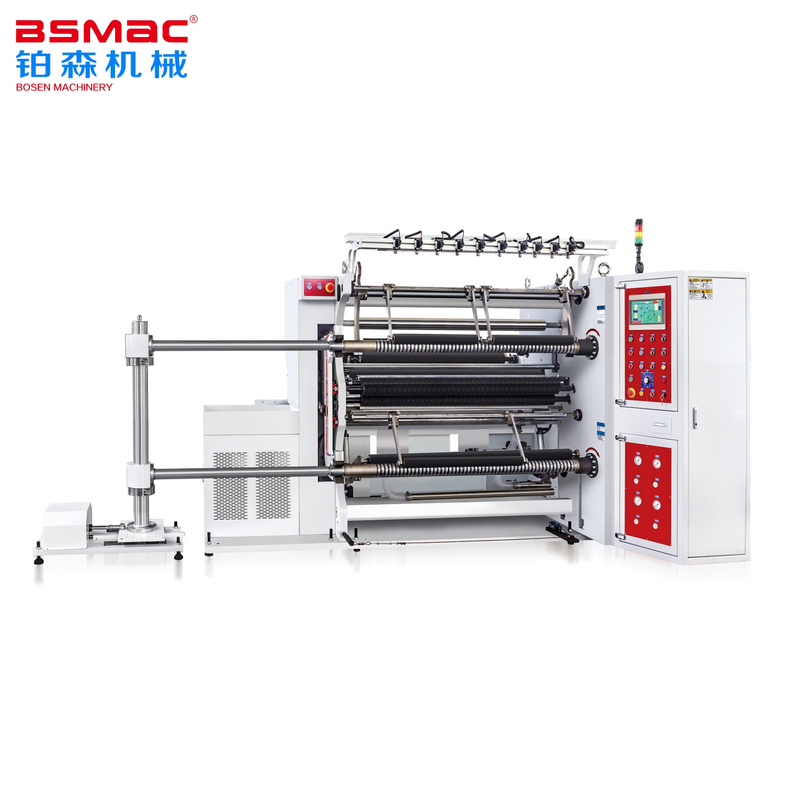

This machine is suitable for rewinding various roll materials such as BOPP/CPP/PET/Paper/Aluminum foil/fabric and other rolling material , and rewinds materials according to different needs during the production process.
Main Feature:
Adopt side-arm rewinding and discharging.
Rewinding pneumatic differential slip shaft.
Gas controlled rewinding press roller.
Hydraulic lift and shaft-less unwinding.
Three-motor control
Main Technical Parameters:
The parameters below for reference, we accept customization
| Model | BSHT1300 |
| Max. width of slitting material | 1300mm |
| Min. width of slitting material | 30mm |
| Max.slitting speed | 400m/min. |
| Max.unwind diameter | φ800mm |
| Max.rewind diameter | φ600mm |
| Machine power | Max.11kw |
| Overall dimension | 4200*2200*1800mm |
| Net weight | 3800kg |
| Machine voltage | 380/220V or customized |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
