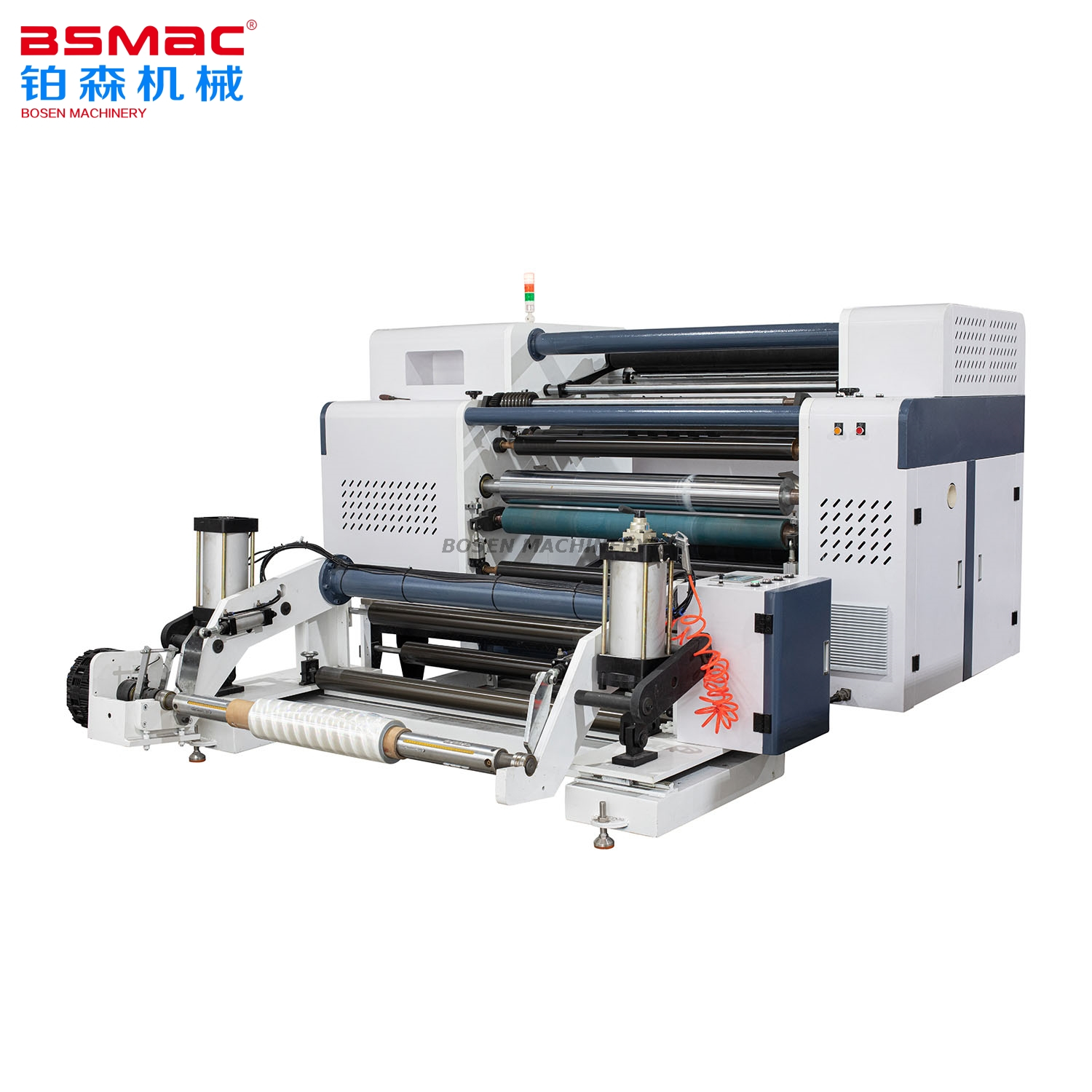

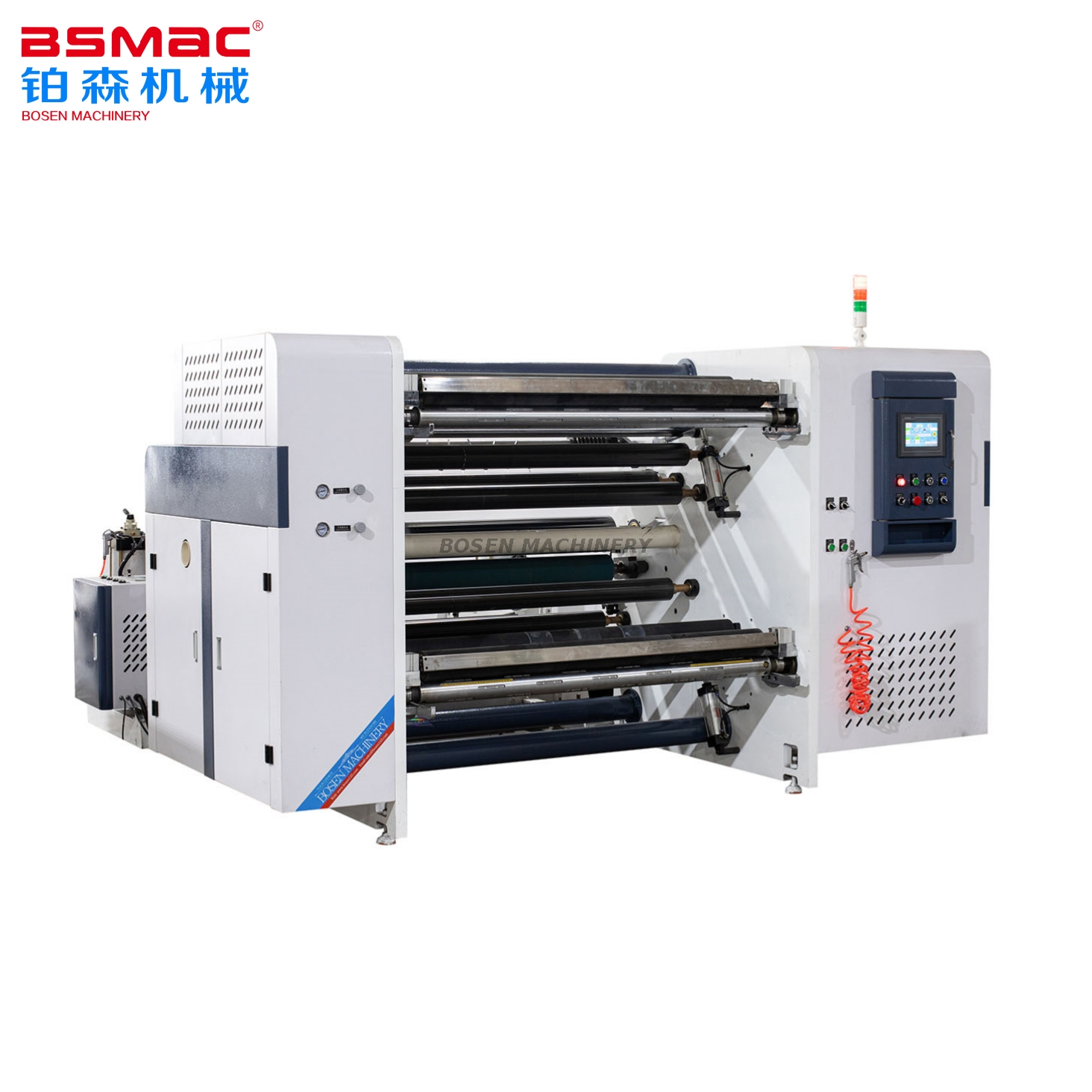

BSG Fully Automatic High Speed Paper Plastic Film PE PP OPP PVC BOPP Slitting And Rewinding Machine

This machine is suitable for slitting and rewinding of various roll materials. Such as cutting and rewinding of various paper 50-300g/m2 (coated paper, offset paper, coated paper, white cardboard, etc.), paper-plastic composite materials and other roll materials.
Availability:
Quantity:

Product Description:

This machine is suitable for slitting and rewinding of various roll materials. Such as slitting and rewinding of various paper 50-300g/m2 (coated paper, offset paper, coated paper, white cardboard, etc.), paper-plastic composite materials and other roll materials.


Main Feature:

1. The machine adopts three-motor serve synchronous control, automatic taper tension system, and center surface coiling method;

2. The machine adopts frequency conversion speed regulation to keep running smoothly during acceleration;

3. Automatic meter counting, alarm and other functions;

4. The unwinding adopts A, B up and down air shaft structures, and the chain is automatically unloaded;

5. Round knife slitting

6. Shaftless hydraulic/pneumatic feeding structure;


Main Technical Parameters:

ModelBSG-700BSG-1100BSG-1300
Width unwinding700mm1100mm1300mm
Unwinder diameter roll1200mm1200mm1200mm
Rewinder cut width600mm x2600mmx2600mmx2
Slitting width20-700mm20-1100mm20-1300mm
Slitting speed5-400m/min5-400m/min5-400m/min
Motor7.5kw7.5kw7.5kw
Weight2800kg3200kg3500kg
Dimension3700×2450×1900mm3700×2850×1900mm3700×3050×1900mm


The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
