Product Description:

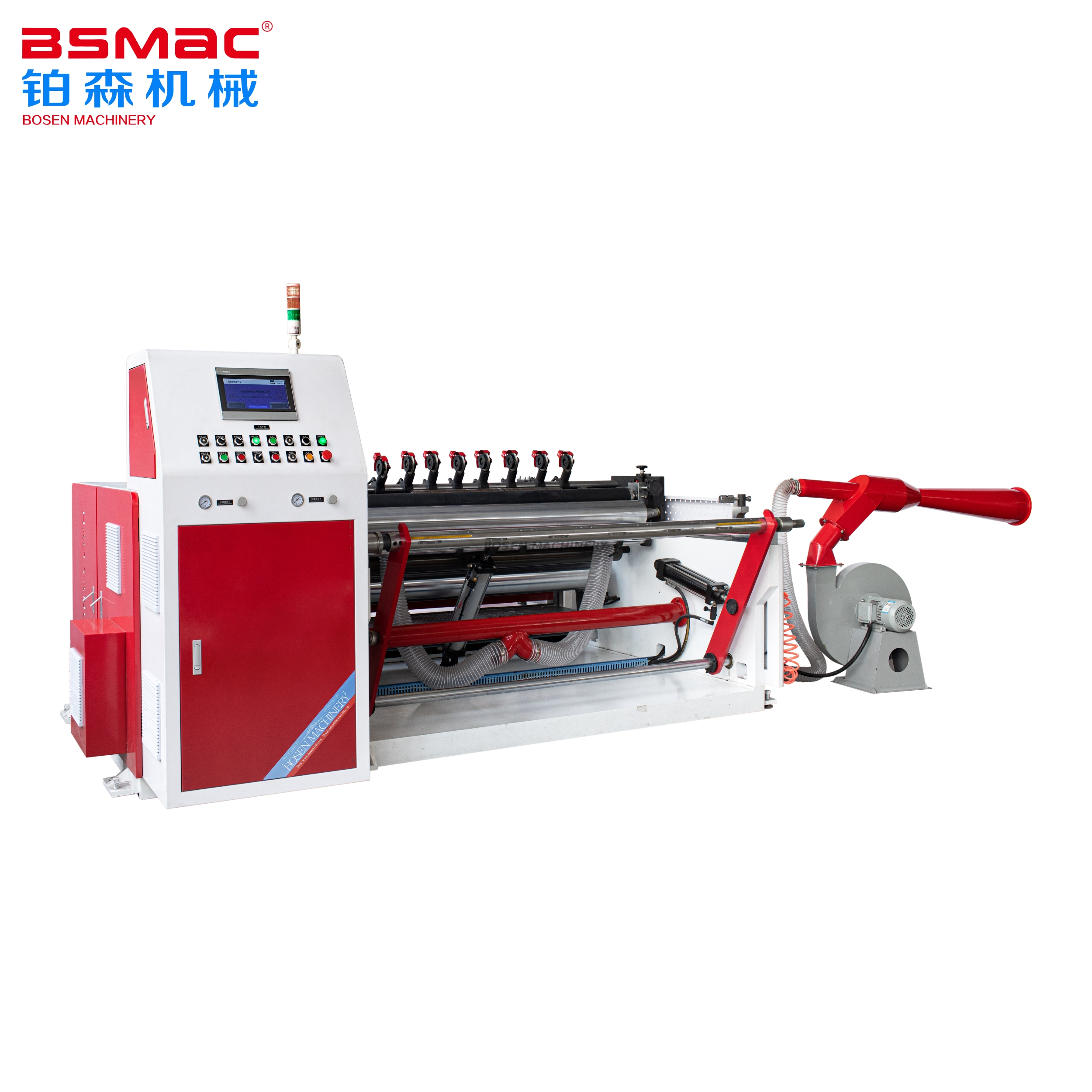

This machine is suitable for rewinding various roll materials such as BOPP, PET, CPP, CPE, PVC, etc., and rewinds materials according to different needs during the production process.
Main Feature:
1. The machine adopts a three-phase asynchronous motor to keep running smoothly during acceleration; (frequency conversion speed regulation is also available)
2. Automatic meter counting, alarm and other functions;
3. The winding adopts the structure of A air expansion shaft, which is convenient for loading and unloading;
4. Unwinding adopts photoelectric automatic deviation correction system, so that irregular materials can be cut normally
5. Flat knife longitudinal cutting waste edge automatic discharge device
6. Shaftless hydraulic feeding, 3 inches.
Main Technical Parameters:
The parameters below for reference, we accept customization
Model | BSC700 | BSC1100 | BSC1300 | BSC1600 |
Unwinding diameter | Φ1200mm | Φ1200mm | Φ1200mm | Φ1200mm |
Rewinding diameter | Φ1200mm | Φ1200mm | Φ1200mm | Φ1200mm |
Min. Slitting width | 100-700mm | 100-1100mm | 100-1300mm | 100-1600mm |
Slitting speed | 400-500m/min | 400-500m/min | 400-500m/min | 400-500m/min |
Motor | 34kw | 36kw | 38kw | 40kw |
Weight | 2600kgs | 2800kgs | 3000kgs | 3200kgs |
Dimension | 3700x2200x1600mm | 3700x2500x1600mm | 3700x2800x1600mm | 3700x3100x1600mm |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
