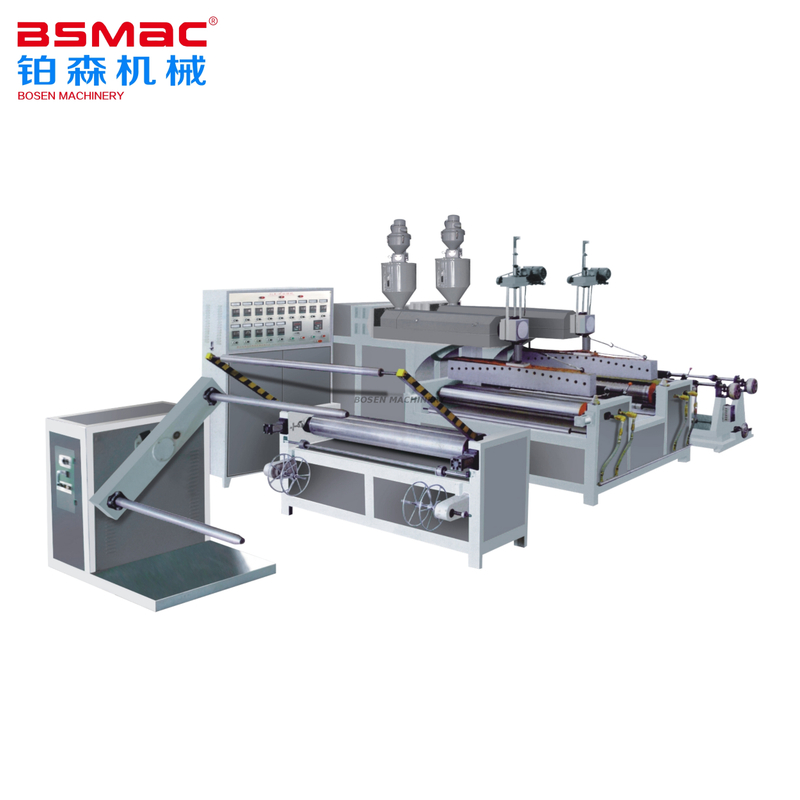

BS-PE 3-Layer PE Air Blown Film Extruder Machine

Made of LDPE material. It can be tailor made into pouches ,cut pieces and mailing envelopes to suit each application.
Availability:
Quantity:

Product Description:

Made of LDPE material. It can be tailor made into pouches ,cut pieces and mailing envelopes to suit each application.


Main Feature:

1.It can be used for various packaging purpose such as moisture proof, dustproof, shockproof/ antivibration and static prevention.

2.It can also make into laminated films with pure Aluminum foil, Aluminized film, Foamed PE sheet, and paper are the applications of sun shading,heat insulation, and paper are the applications of sun shading, heat insulation, and packaging


Main Technical Parameters:

The parameters below for reference, we accept customization


Model

BS-PE-800

BS-PE-1000

BS-PE-1200

BS-PE-1500

BS-PE-1800

BS-PE-2000

BS-PE-2500

Diameter of Screw

φ55 mm

φ60 mm

φ65 mm

φ75 mm

φ90 mm

φ95 mm

φ110 mm

Main Motor (kw)

11

15

15

18.5

30

37

45

Width of Products   (mm)

800

1000

1200

1500

1800

2000

2500

L/D Ratio of Screw

28:1

28:1

28:1

28:1

28:1

28:1

28:1

Total Power (kw)

35

50

58

70

86

95

135

Max. Output

45 kg/h

45 kg/h

60 kg/h

75 kg/h

90 kg/h

120 kg/h

160 kg/h

Linear Speed (m/h)

1200

1200

1200

1200

1200

1200

1200


The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
