Product Description:

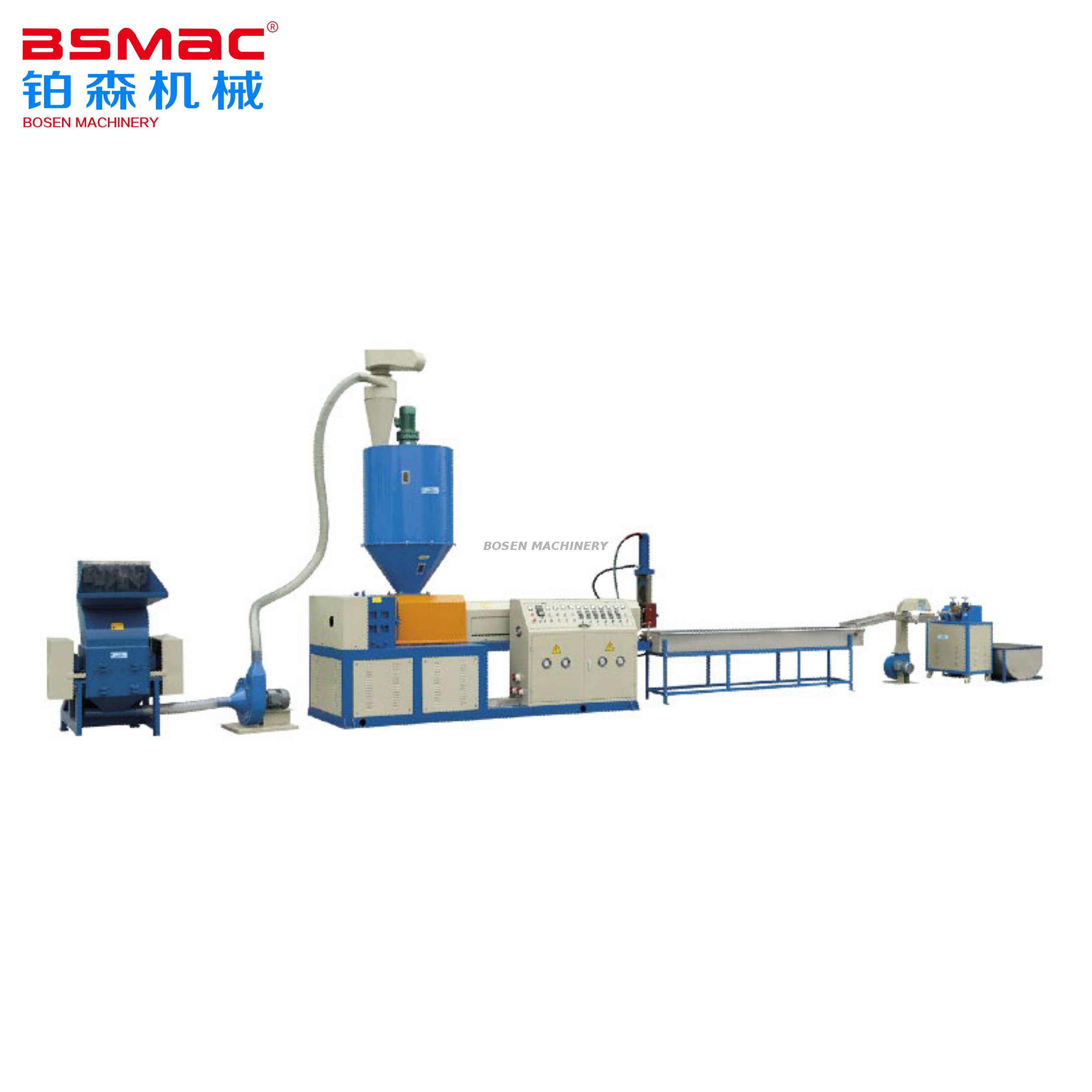

Point at the pelletizer based on the HDPE, LDPE, etc.
Main Feature:
1. The plastic products will be cut with a state of melting, any density of high polymer all can employ this way, pelletizer clot will not produce any dust, and can produce the round pellet, the packing and transportation are very convenient.
2. The machine can control its speed focusing on the capacity and pelletizing speed automatically, so that changing the size of pellet applies to the amount of blade.
Main Technical Parameters:
The parameters below for reference, we accept customization
Model | BS-ZL90 | BS-ZL100 | BS-ZL110 | BS-ZL120 |
Screw Diameter | 90 | 100 | 110 | 120 |
Screw L/D | 22:1 | 24:1 | 26:1 | 26:1 |
Screw Rotate Speed (r/min) | 10-90 | 20-90 | 30-100 | 30-100 |
Screw Material | 38 CrMoALA | |||
Driving Motor (kw) | 22 | 30 | 37 | 45 |
Output (kg/h) | 60-100 | 90-150 | 120-200 | 130-250 |
Weight (kg) | 1800 | 2000 | 2200 | 3000 |
Dimension (mm) | 4500x1500x1800 | 5000x1500x1800 | 5500x1500x1800 | 6000x1500x1800 |
