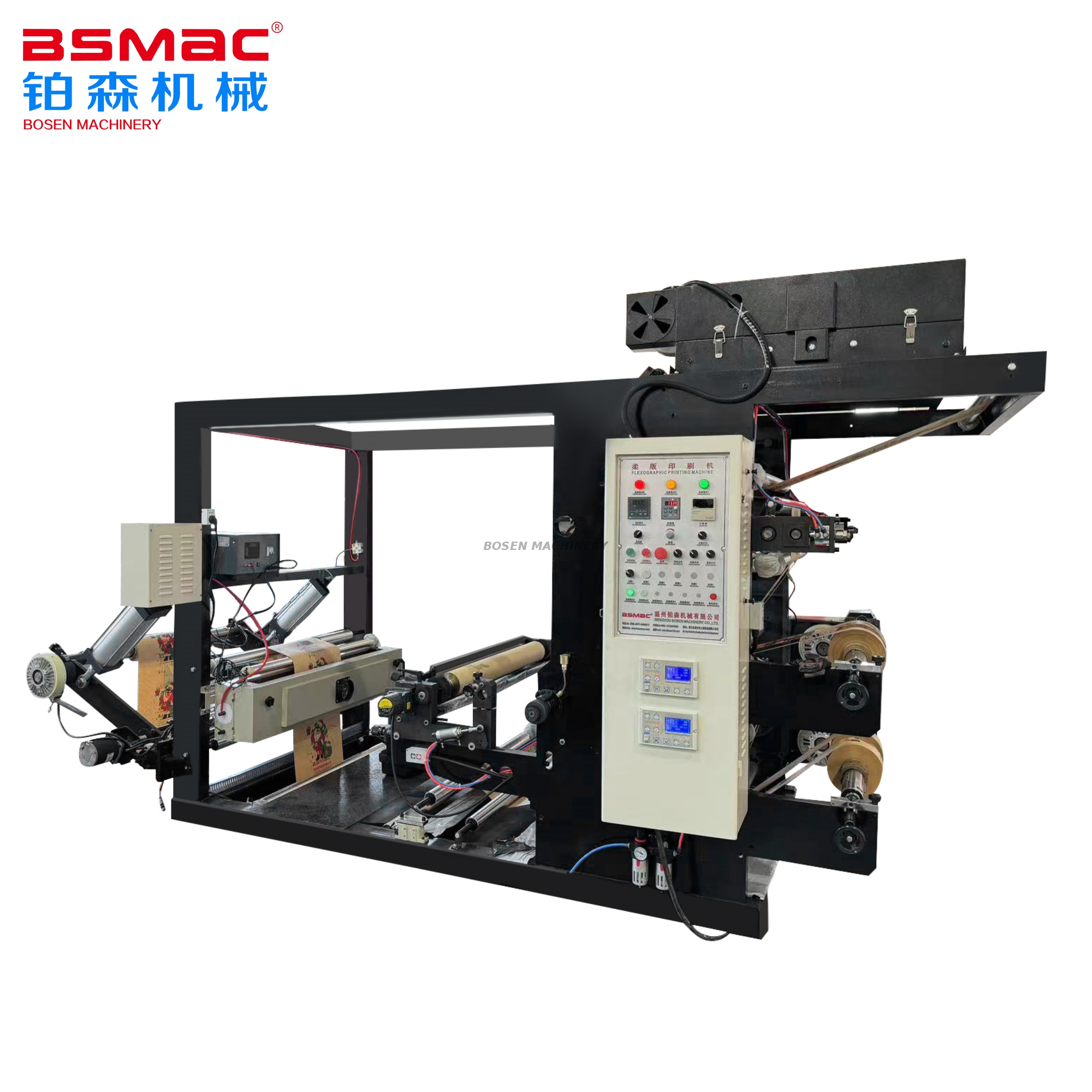

BSYTM1 Food Packaging Rolling Paper 1 Colors Flexographic Printing Machine

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene,polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Application:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene,polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Performance Characteristics:
Easy operation, flexible starting, accurate colour register
The meter couter can set printing quantity according to thr requirements.
Stop the machine automatically at the set quantity or when the material is cut off.
Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
The printing ink is spread by the knurled cylinder with enven ink colour.

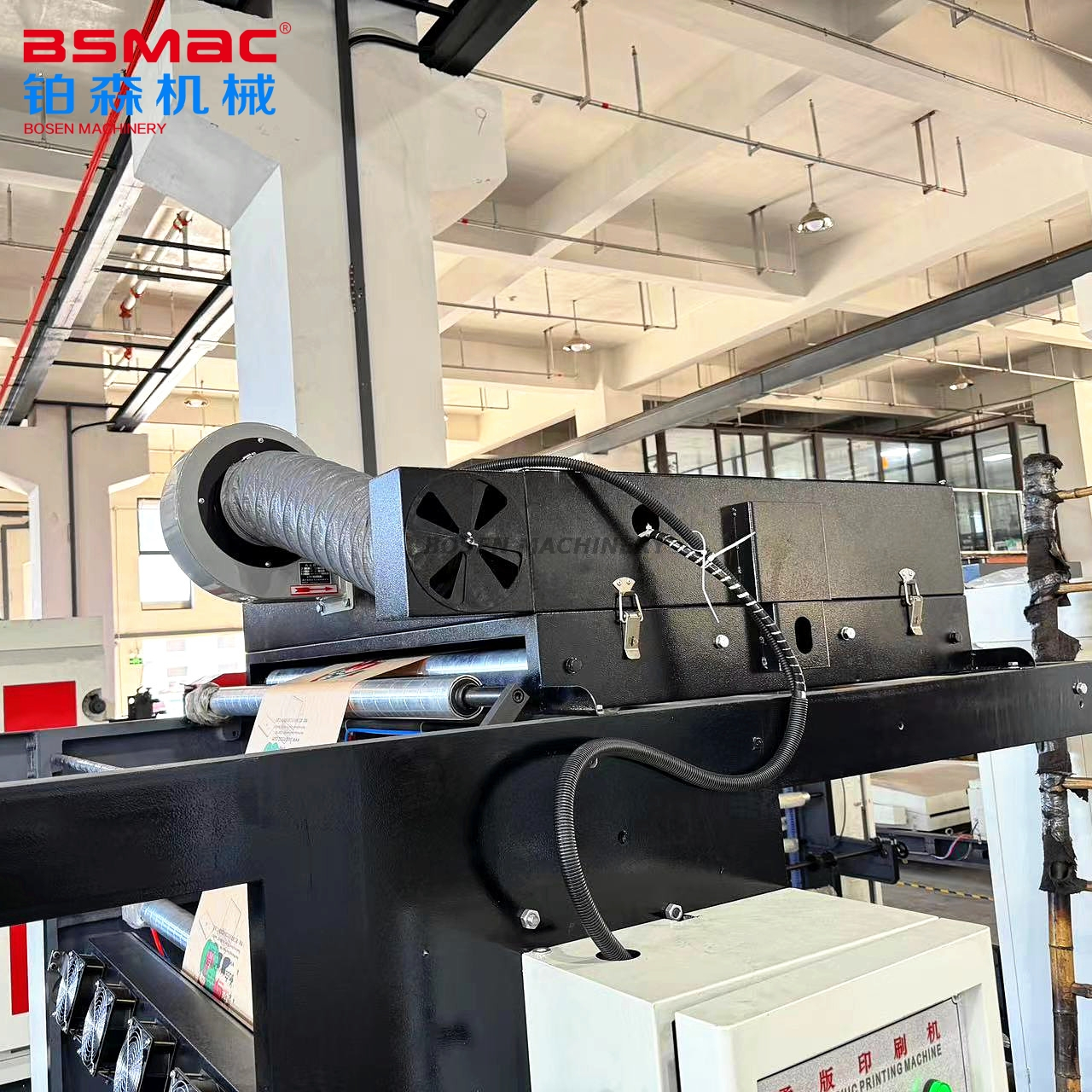

Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
360°continuous and adjustable longitudinal register device.
The imported frequency control of motor speed adapts to different printing speed.
There are Inching/Stopping buttons on the plate roller base and material rolling rack,so as to make it easy operate the machine when the plate is installed.

Model	BSYTM
Printing color	1
Printing length	200-1000mm
Printing plate lifting system	Manual
Machine speed	60m/min
Printing speed	5-50m/min
Anilox cylinder	Metal
Register precision	±0.5mm
Rewinder/Unwinder diameter	1000mm
Main motor	1.5kw
Electrical heater	6.5kw
Blower of heater	400w
Inking motor	0.37kw
Main inverter	1.5kw
Weight	1000kgs
Total power	11kw
