Product Description:

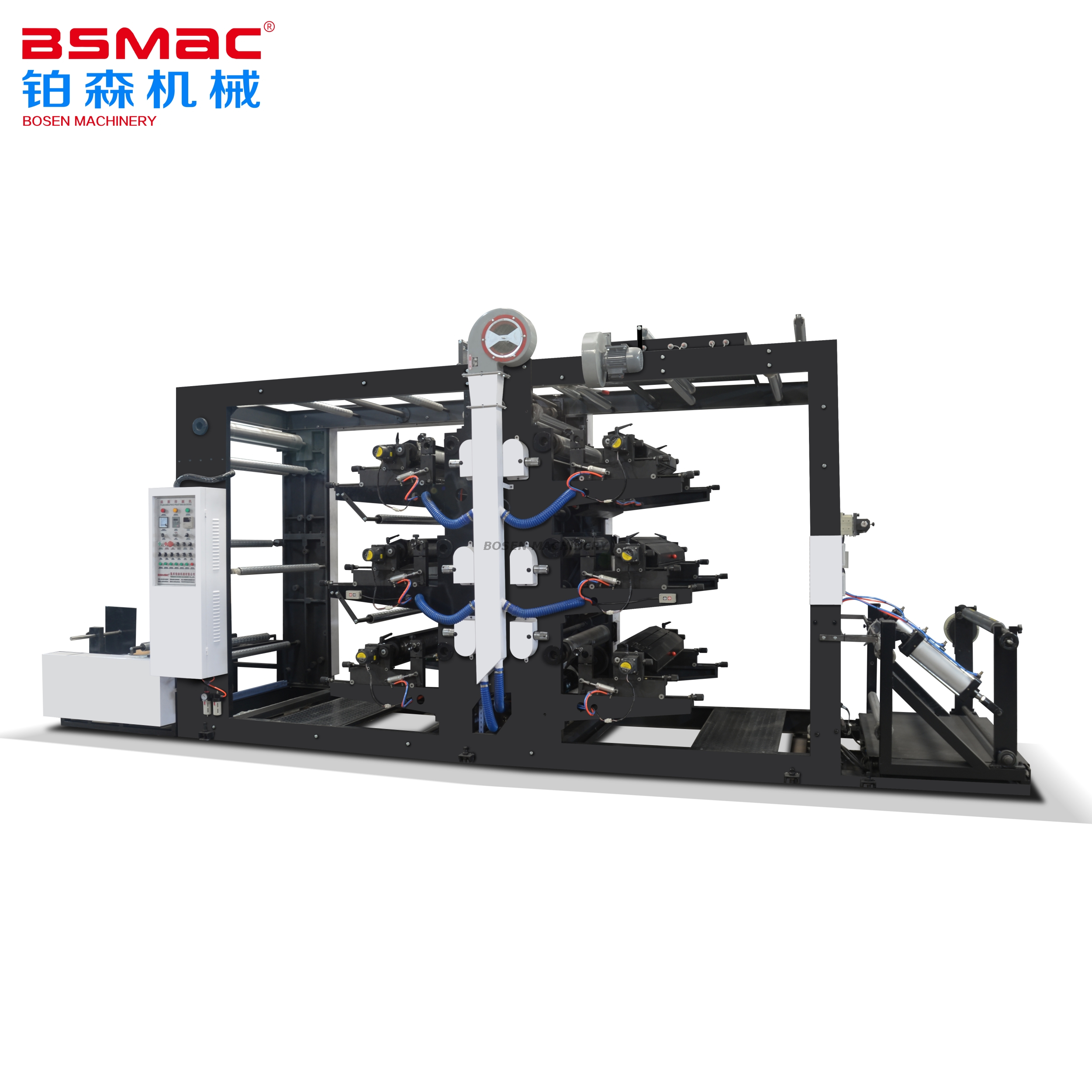

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Main Features：
1. Easy operation, flexible starting, accurate Ppcolor register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The motor has inverter controller with different speed.
8. The electric board with buttons let machine operation be easy and effective.
9. Automatic laoding material, computer control is available.
Main Technical Parameters:
The parameters below for reference, we accept customization
| Model | BSYT6A-600 | BSYT6A-800 | BSYT6A-1000 |
Max. Width Of Printing Material | 600mm | 800mm | 1000mm |
| Max. Pringting Width | 560mm | 760mm | 960mm |
| Length Range Of Printing Product | 200-1300mm | 200-1300mm | 200-1300mm |
| Max. Diameter Of Roll Material | Φ1000mm | Φ1000mm | Φ1000mm |
| Mechanical Speed | 60m/min | 60m/min | 60m/min |
Max. Printing Speed | 10-50m/min | 10-50m/min | 10-50m/min |
| Thickness of plate(Including Two-sided Glue Paper) | 2.38mm | 2.38mm | 2.38mm |
| Total Power | 22kw | 24kw | 26kw |
Weight | 4500kg | 5000kg | 5500kg |
| Overall Dimension(L×W×H) | 6500×1800×2800mm | 6500×1900×2800mm | 6500×2100×2800mm |
