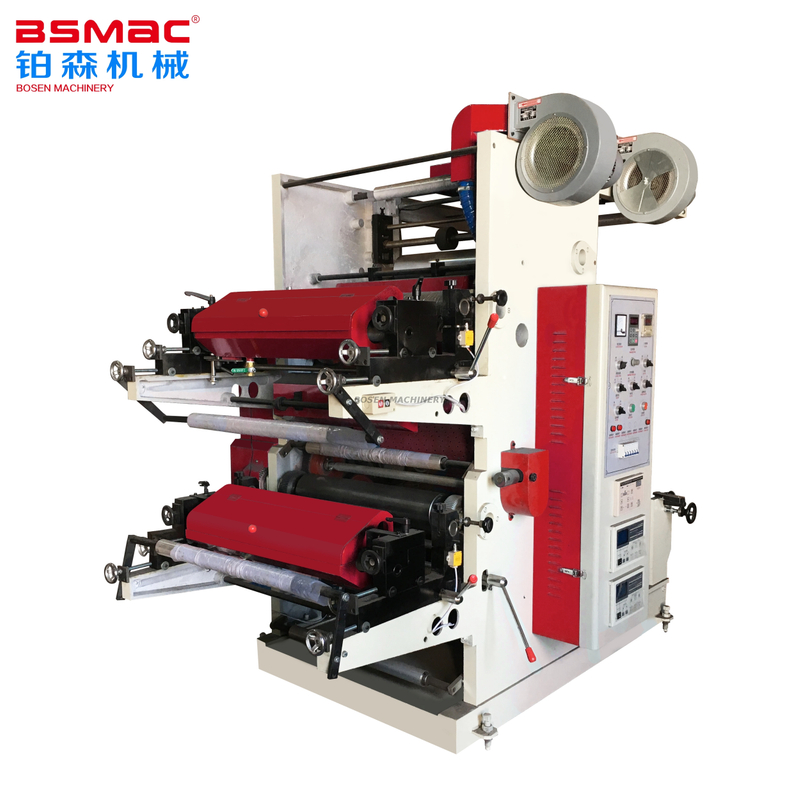

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
1. Easy operation, flexible starting, accuate colour register
2. The meter couter can set printing quantity according to thr requirements.
Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with enven ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speed.
8. There are Inching/Stopping buttons on the plate roller base and material rolling rack,
so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
The parameters below for reference, we accept customization
| Model | BS YT2-600 | BS YT2-800 | BS YT2-1000 |
| Max. Width of printing material | 600mm | 800mm | 1000mm |
| Max. Printing Width | 560mm | 760mm | 960mm |
| Length range of printing product | 228-914mm | 228-914mm | 228-914mm |
| Max. Diameter of roll material | φ450mm, or customized | ||
| Mechanical speed | 70m/min | 70m/min | 70m/min |
| Max. Printing speed | 50m/min | 50m/min | 50m/min |
| Thickness of plate (Including Two-sided Glue Paper) | 2.38mm | 2.38mm | 2.38mm |
| Total power | 8kw | 8kw | 8kw |
| Weight | 1800kg | 2000kg | 2200kg |
| Dimension | 2300×1860×2145mm | 2300×2060×2145mm | 2300×2260×2145mm |
