Use：

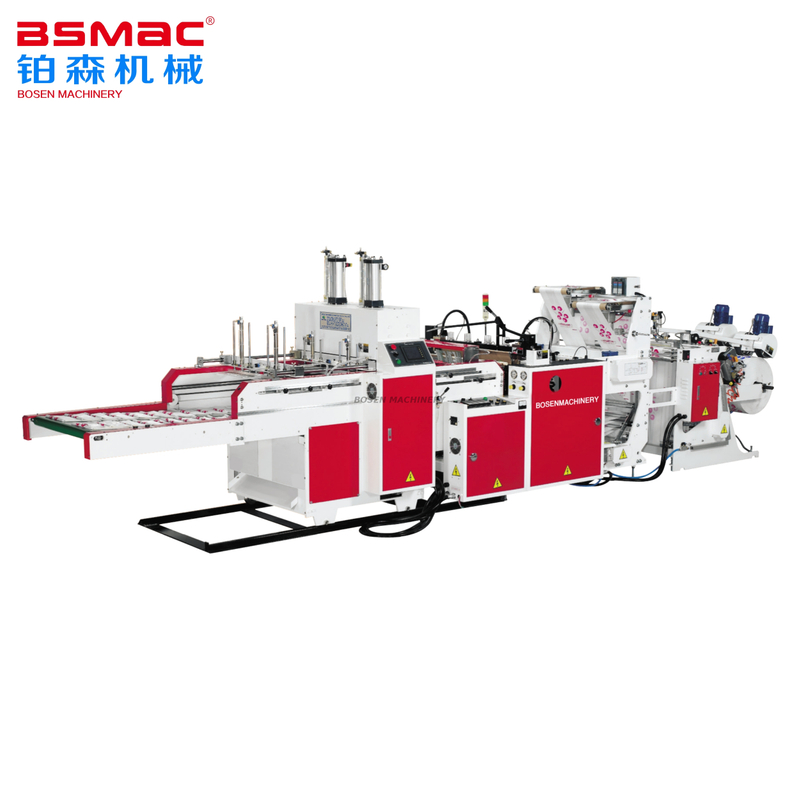

Used for making T-shirt bags, flat open bags, shopping bags,etc.
Feature:
Sealing and cutting synchronization, no tension,bottom seal fastness and beautiful product. Automatic discharge, automatic reset.
High speed model with PLC touch screen and dancing roller in feeding material unwinding part,and 5 inverter motor system.
Main Technical Parameters:
Model | BS-TH400×2 | BS-TH450×2 | BS-TH500×2 |
Max. Bag Making Width (mm) | 350 ×2 lines (370) | 400 ×2lines (420) | 450 ×2lines (470) |
Max. Bag Making Length (mm) | 600 | 600 | 600 |
Bag Making Thickness (mm) | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 |
Bag Making Speed (pcs/min) | (200-350)×2 | (200-350)×2 | (200-350)×2 |
Main Motor (kw) | 2.2 | 2.2 | 2.2 |
Weight (kg) | 2300 | 2400 | 2500 |
Mechanical Dimension (mm) | 8000×1700×1800 | 8000×1800×1800 | 8000×1900×1800 |
Model | BS-H400×2 | BS-H450×2 | BS-H500×2 |
Max. Bag Making Width (mm) | 350 2 lines (370) | 400 ×2lines (420) | 450 ×2lines (470) |
Max. Bag Making Length (mm) | 600 | 600 | 600 |
Bag Making Thickness (mm) | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 |
Bag Making Speed (pcs/min) | (180-250)×2 | (180-250)×2 | (180-250)×2 |
Main Motor (kw) | 2.2 | 2.2 | 2.2 |
Weight (kg) | 2300 | 2400 | 2500 |
Mechanical Dimension (mm) | 7000×1700×1800 | 7000×1800×1800 | 7000×1900×1800 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
