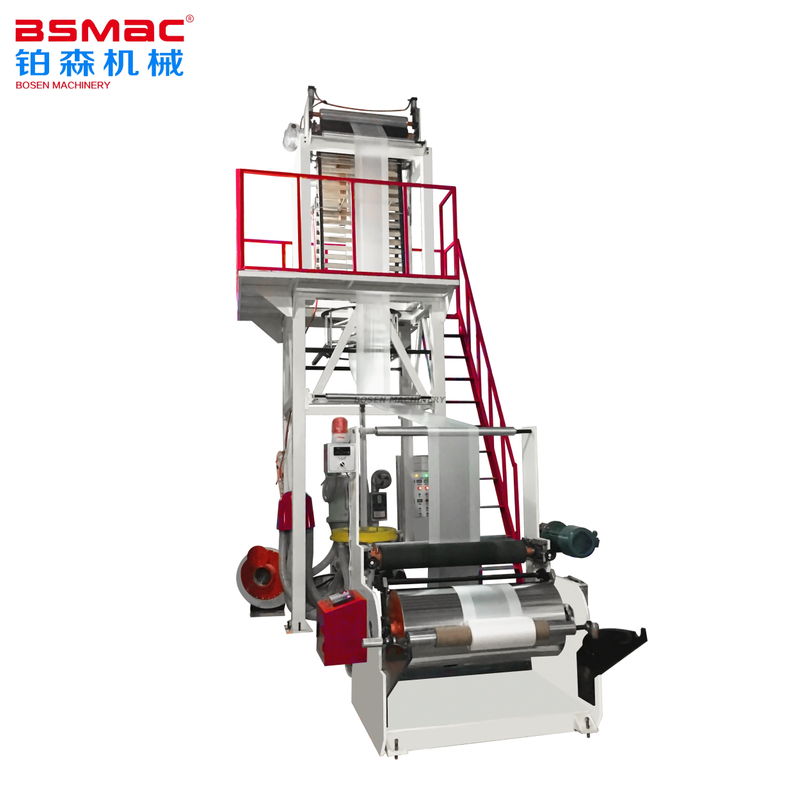

BSJH Premium High Speed Biodegradable Material Film Blowing Machine

It is used for blowing PE(HDPE LDPE) film and 100% biodegradable film (Corn starch, Pla Pbat ect.), which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect
Availability:
Quantity:

Product Description:

It is used for blowing PE(HDPE LDPE) film and  100% biodegradable film (Corn starch, Pla Pbat ect.), which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect


Main Feature:

1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%’s energy.

2.Both the screw and barrel adopt 38 CrMoAl, with nitrided treatment.

3.You could choice machine options like printing online, Folding online, sltting online, bag making online as you like. We could design machine as you needs.


Main Technical Parameters:


MODEL

BSJH-45-700

BSJH-55-900

BSJH-65-1400

BSJH-75-1700

BSJH-85-2200

Max.Layflat Width   (mm)

500

800

1200

1500

2000

Max.Output          (kg/h)

60

100

150

200

250

Raw Material

PBAT/ PLA/CORN STARCH/EVA/PE

Thickness (mm)

0.008-0.015

Screw Diameter    (mm)

φ45

φ55

φ65

φ75

φ85

Screw Ratio             L/D

30:1 /32:1

30:1 /32:1

30:1 /32:1

30:1 /32:1

30:1 /32:1

Extruder Driving Power (kw)

15

18.5

30

45

75

Dimensions(L×W×H)  M

4.5×1.8×5

6×2×6

7.5×2.5×7

9×3×8

11×3.4×9


The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
