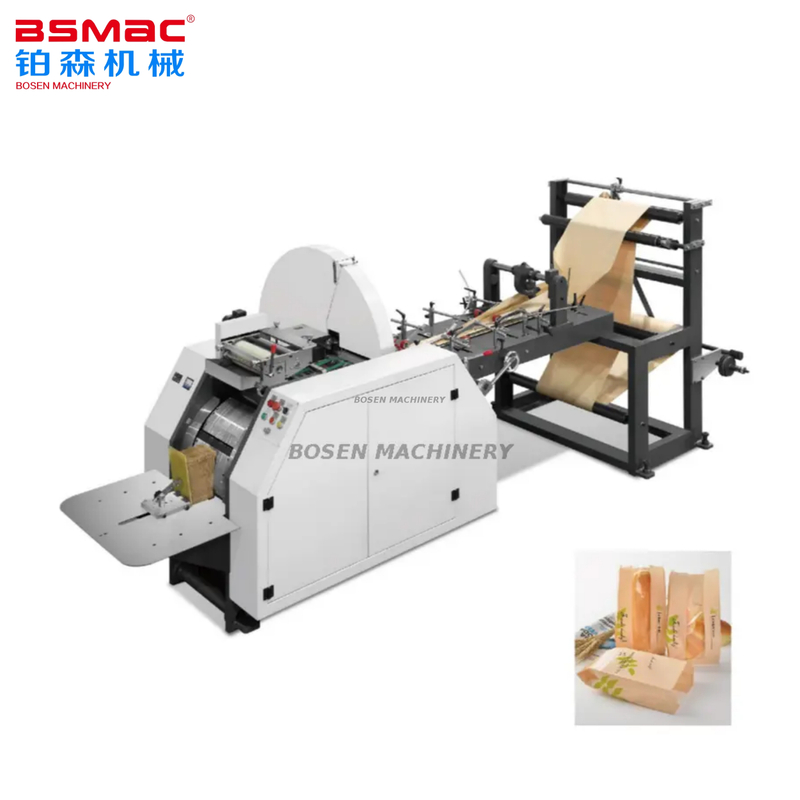

BSJD Sharp Bottom Kraft Medium Size Paper Bag Making Machine

The machine is an ideal equipment for all kinds of food paper bags such as bread packing paper bags. All the operation procedures are controlled by PLC, which reduce labor foece and improve products precision.
Availability:
Quantity:

Product Description:

The machine is an ideal equipment for all kinds of food paper bags such as bread packing paper bags. All the operation procedures are controlled by PLC, which reduce labor foece and improve products precision.


Main Feature:

1. It is suitable for paper between 40-80gsm.

2. It can control bag length through human-machine interface.

3.The PLC system can calculate parameters correctly.

4.It is equipped with an accurate photocell system


Main Technical Parameters:

The parameters below for reference, we accept customization

Model

BSJD-650

Paper weight

40-80g/㎡

Bag length

160-650mm

Bag width

80-300mm

The width of paper roll

260-840mm

Machine speed

60-300pcs/min

Paper bag insert

0-100mm

Machine power

3.7kw

Machine total weight

3000kg

Machine dimension(WxLxH)

1.4X4.2X1.6m
