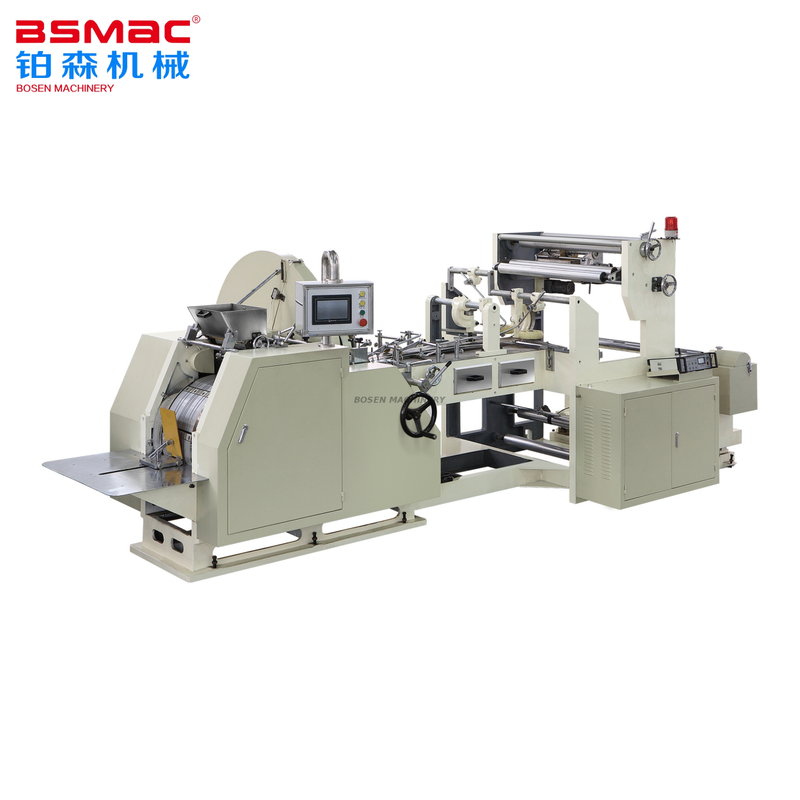

BSJD-400 Automatic High Speed Food Paper Bag Making Machine

This is very good price model for making flat bottom paper bag. This is easy to operate and it is popular model in paper produce area.
Availability:
Quantity:

Product Description:

The machine is an ideal equipment for all kinds of food paper bags such as bread packing paper bags. All the operation procedures are controlled by PLC, which reduce labor foece and improve products precision.



Main Feature:

1. It is suitable for paper between 40-80gsm.
2. It can control bag length through human-machine interface.
3.The PLC system can calculate parameters correctly.
4.It is equipped with an accurate photocell system.



Main Technical Parameters:

The parameters below for reference, we accept customization

MODELBSJD-400BSJD-650
Paper weight (g/㎡)40-8040-80
Bag length (mm)160-420220-650
Paper bag width (mm)70-26070-300
Max. roll paper width(mm)260-720260-840
Bag making speed(pcs/min)60-40060-400
Main Motor (KVA)88
Weight(kg)30004200
Dimension(m)2.1×4.5×1.92.1×5×2
