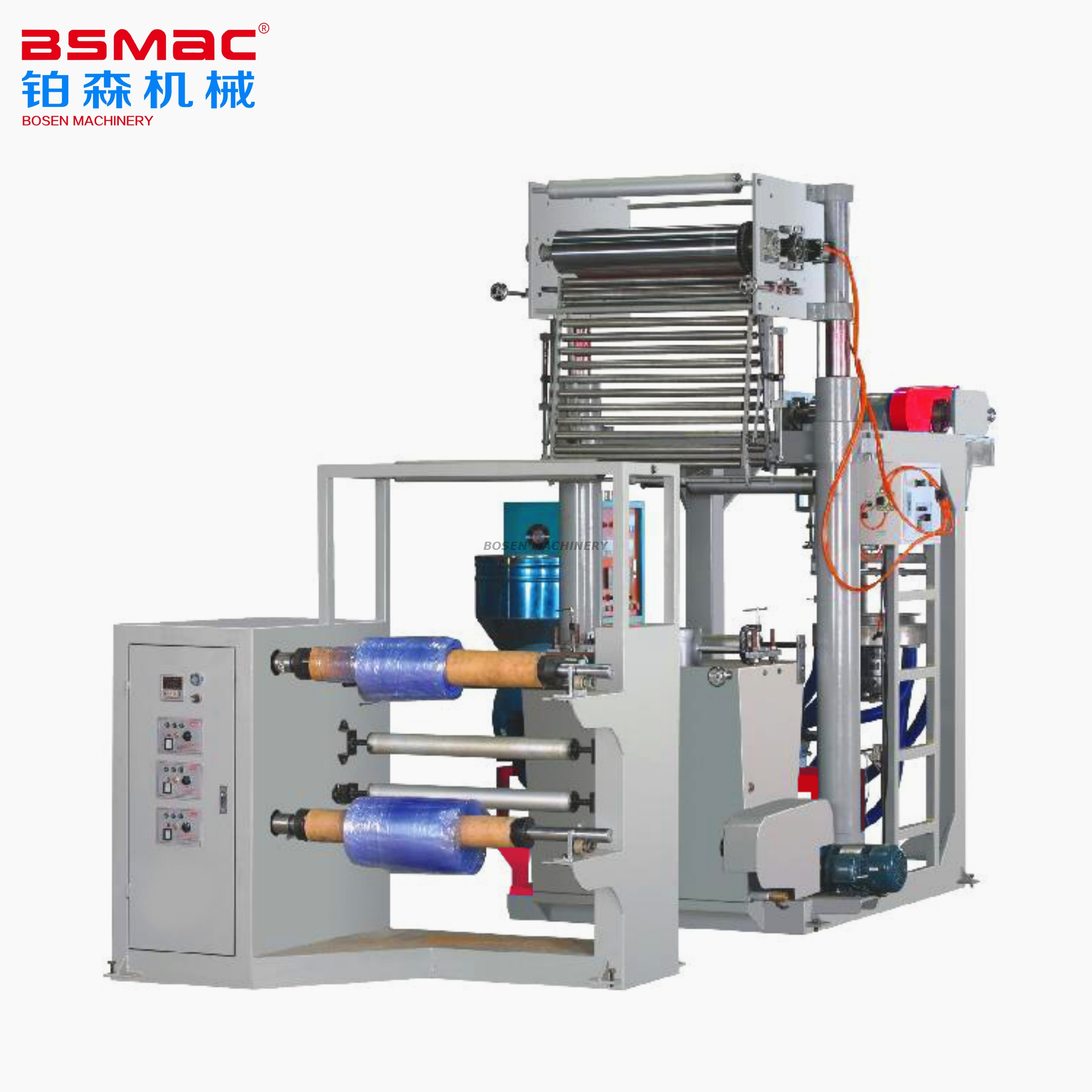

PVC shrink film blowing machine is applicable to PVC membrane tube forming technology product Blown Shrink Film, film with good transparency, excellent gloss, high shrinkage, etc., which is popular in today's new packaging materials. It also has been widely used as the outer packages of food, beverages, tea, glass products, handicrafts, sanitary wares, cosmetics, electronic products, and so on.
| Quantity: | |
|---|---|
Product Description:
PVC shrink film blowing machine is applicable to PVC membrane tube forming technology product Blown Shrink Film, film with good transparency, excellent gloss, high shrinkage, etc., which is popular in today's new packaging materials. It also has been widely used as the outer packages of food, beverages, tea, glass products, handicrafts, sanitary wares, cosmetics, electronic products, and so on.
Main Technical Parameters:
MODEL | BSJ-PVC-45-500 | BSJ-PVC-50-600 | BSJ-PVC-55-700 | BSJ-PVC-65-800 |
| Raw Material | PVC | |||
Film Thickness (mm) | 0.02-0.08 | |||
| Film Width (mm) | 70-400 | 70-500 | 150-600 | 200-700 |
| Output | 30kg/h | 8-40kg/h | 15-50kg/h | 75 |
| Screw Diameter (mm) | Φ45 | Φ50 | Φ55 | Φ65 |
| Screw Ratio L/D | 28:1 | |||
| Mian Motor (kw) | 7.5 | 11 | 18 | 22 |
| Heating (kw) | 22 | 30 | 33.7 | 43 |
| Dimensions (L×W×H) (m) | 3x1.2x2.1 | 4x1.4x2.5 | 5.5x2.5x3.5 | 6.2x2.7x3.8 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
Product Description:
PVC shrink film blowing machine is applicable to PVC membrane tube forming technology product Blown Shrink Film, film with good transparency, excellent gloss, high shrinkage, etc., which is popular in today's new packaging materials. It also has been widely used as the outer packages of food, beverages, tea, glass products, handicrafts, sanitary wares, cosmetics, electronic products, and so on.
Main Technical Parameters:
MODEL | BSJ-PVC-45-500 | BSJ-PVC-50-600 | BSJ-PVC-55-700 | BSJ-PVC-65-800 |
| Raw Material | PVC | |||
Film Thickness (mm) | 0.02-0.08 | |||
| Film Width (mm) | 70-400 | 70-500 | 150-600 | 200-700 |
| Output | 30kg/h | 8-40kg/h | 15-50kg/h | 75 |
| Screw Diameter (mm) | Φ45 | Φ50 | Φ55 | Φ65 |
| Screw Ratio L/D | 28:1 | |||
| Mian Motor (kw) | 7.5 | 11 | 18 | 22 |
| Heating (kw) | 22 | 30 | 33.7 | 43 |
| Dimensions (L×W×H) (m) | 3x1.2x2.1 | 4x1.4x2.5 | 5.5x2.5x3.5 | 6.2x2.7x3.8 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
