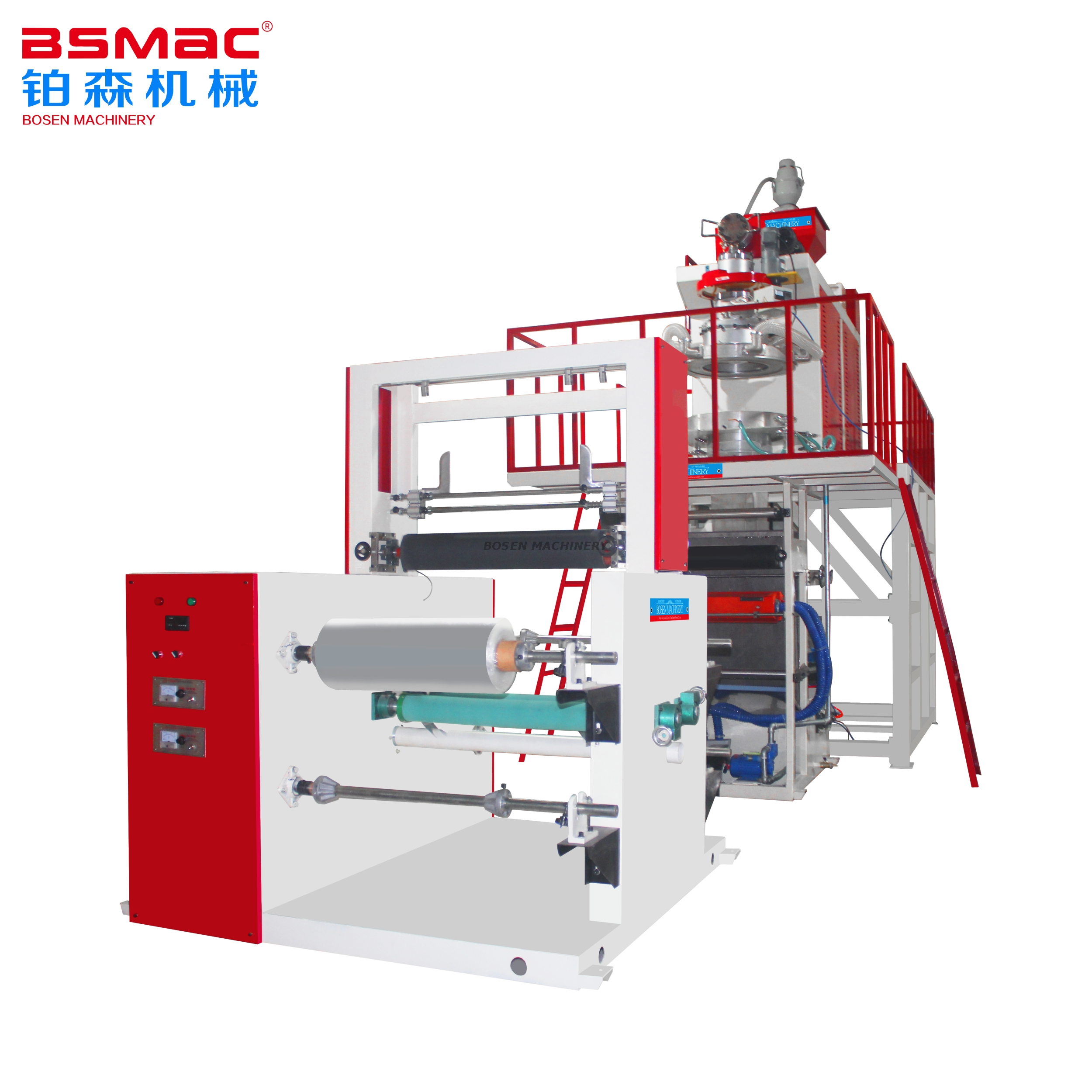

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
| Quantity: | |
|---|---|
Product Description:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Main Feature:
1. The die can be rotated around 360 degrees to enhance the strength and uniformity of the plastic film.
2. Die hard chromium plating; air-cooling device structure for the labyrinth, the amount of air evenly.
3. Using recycled water cooling to make film achieve the best transparency.
4. Winding device is center rewinding, adjusted by torque motor.
Main Technical Parameters:
MODEL | BSJ-PP-55-600 | BSJ-PP-60-700 | BSJ-PP-65-800 | BSJ-PP-70-900 |
Diameter of Screw (mm) | Φ55 | Φ60 | Φ65 | Φ70 |
| Max. Layflat Width (mm) | 100-500 | 200-600 | 200-700 | 300-800 |
Film Thickness (mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| Max. Output (kg/h) | 35 | 50 | 60 | 75 |
| Screw Ratio L/D | 28:1/30:1 | 28:1/30:1 | 28:1/30:1 | 28:1/30:1 |
| Power of Mian Motor (kw) | 11 | 15 | 18.5 | 22 |
| Power of Traction Motor (kw) | 1.1 | 1.5 | 1.5 | 1.5 |
Dimensions (L×W×H) (m) | 4.5x1.1x4.5 | 4.8x1.3x4.8 | 4.8x1.5x5 | 5x1.8x5.2 |
| Weight (T) | 1.8 | 2.5 | 3 | 4 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
