Product Description:

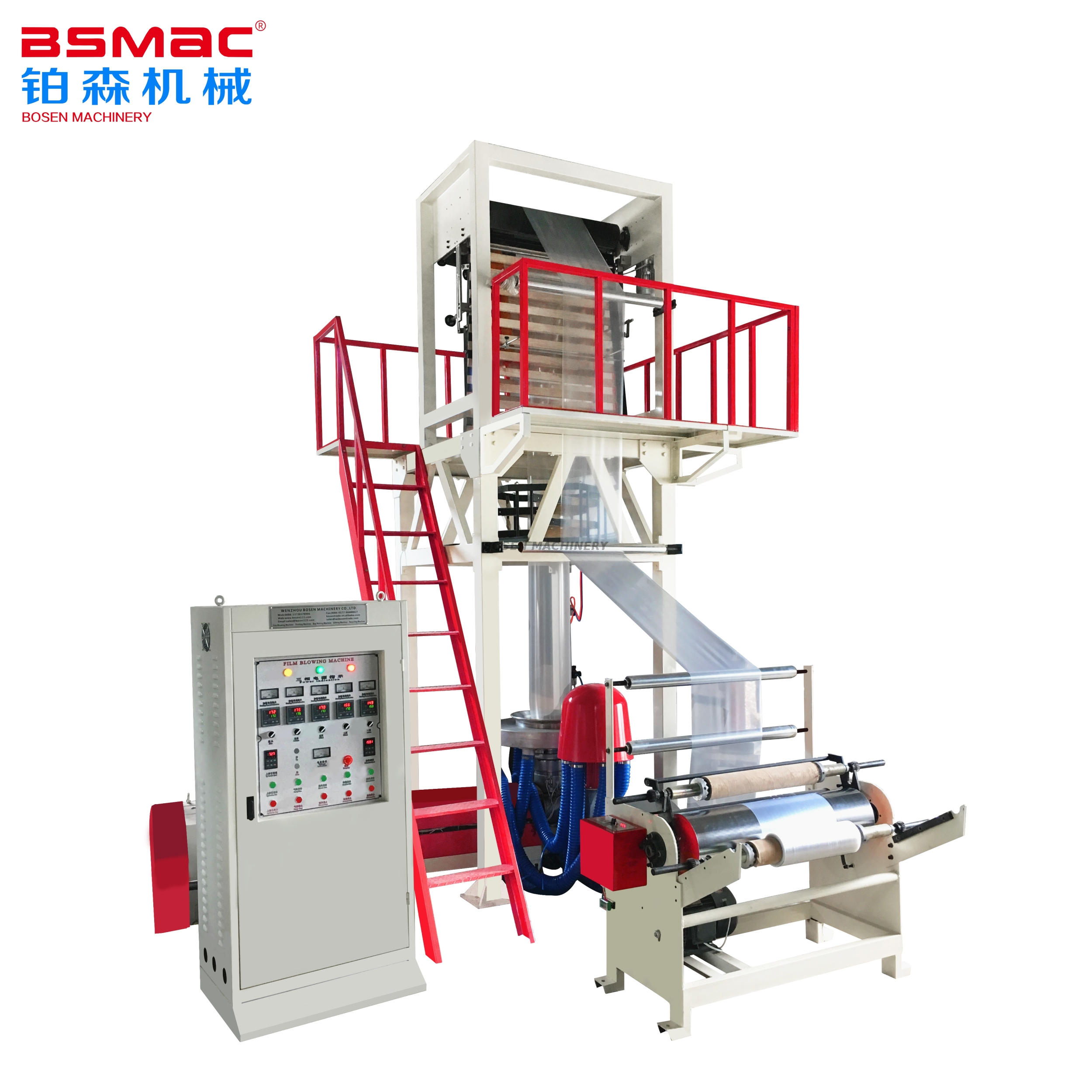

It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect
Main Feature:
1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%'s energy.
2.Both the screw and barrel adopt 38CrMoAl, with nitrided treatment.
3.You could choice machine options like printing online,Folding online,sltting online as you like.We could design machine as you needs.
Main Technical Parameters:
MODEL | BSJ-45-500 | BSJ-50-700 | BSJ-55-900 | BSJ-60-1100 | BSJ-65-1350 | BSJ-75-1700 |
| Max.Layflat Width (mm) | 400 | 600 | 800 | 1000 | 1200 | 1500 |
Film Thickness (mm) | 0.008-0.15 | 0.008-0.15 | 0.008-0.15 | 0.008-0.25 | 0.008-0.25 | 0.008-0.25 |
| Max. Output(kg/h) | 20-35 | 30-45 | 50-60 | 60 | 90 | 120 |
| Raw Material | HDPE/LLDPE/LDPE/EVA | |||||
Screw Diameter (mm) | Φ45 | Φ50 | Φ55 | Φ60 | Φ65 | Φ75 |
| Screw Ratio L/D | 28:1/30:1 | 28:1/30:1 | 28:1/30:1 | 28:1/30:1 | 28:1/30:1 | 28:1/30:1 |
Extruder Driving Power(kw) | 5.5-7.5 | 7.5-11 | 15-18.5 | 18.5 | 22 | 37-45 |
Total Power(kw) | ≈22 | ≈25 | ≈32 | ≈45 | ≈50 | ≈65 |
Dimensions (L×W×H) (m) | 2.6x1.5x3.8 | 3.2x1.7x4.2 | 4.2x1.9x4.5 | 4.8x2.1x5.8 | 5.8x2.4x6.5 | 7x2.7x7.5 |
Weight(T) | ≈1.2 | ≈1.5 | ≈2 | ≈2.5 | ≈3.2 | ≈7.5 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
