Product Description:

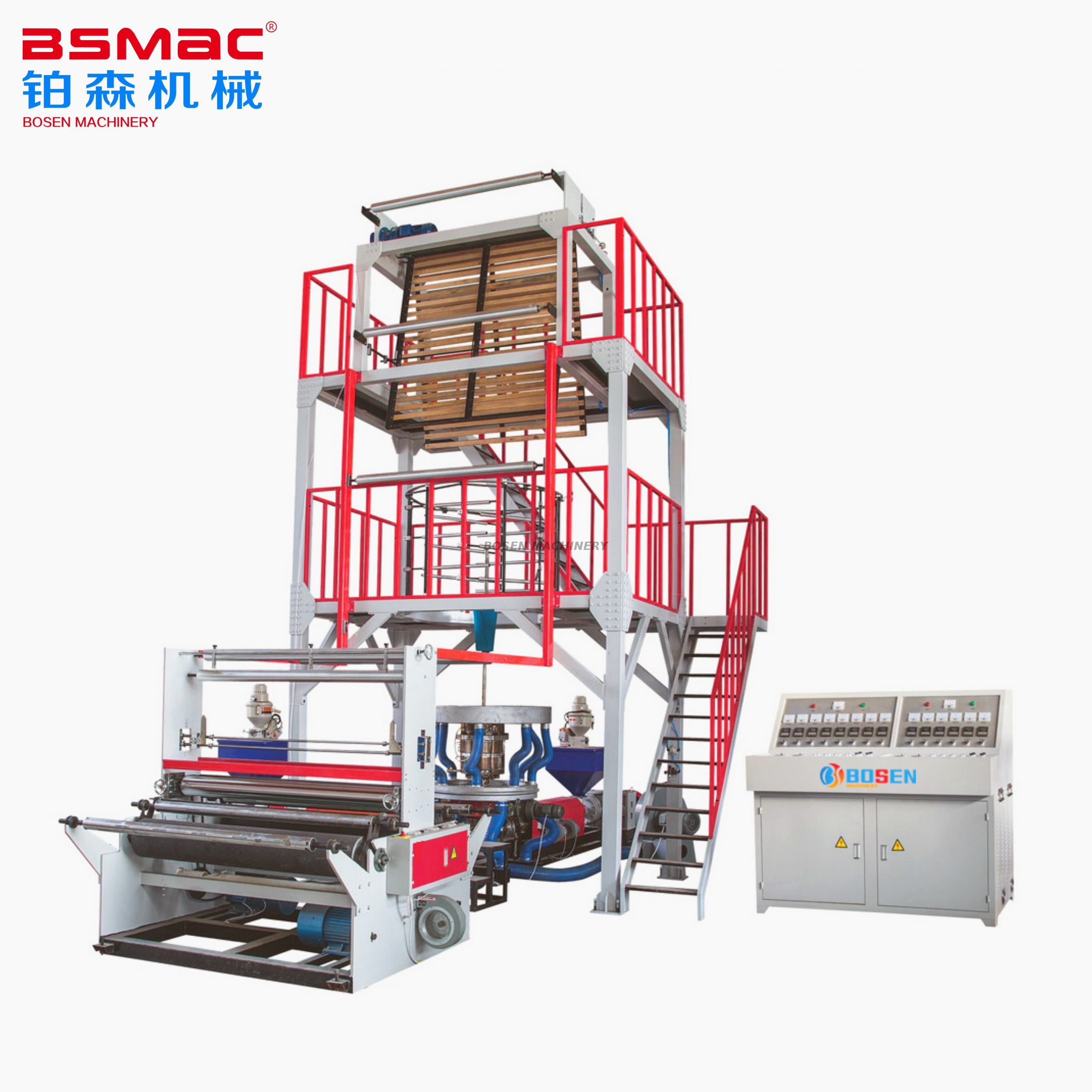

It is used for blowing PE(HDPE LDPE) film, which is widely used for as laminating film, packing film, agriculture film, film for textile, clothing bag, ect
Main Feature:
1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%;s energy.
2.Both the screw and barrel adopt 38CrMoAl, with nitrided treatment.And the screw with bimetallic aclloy.
3.This middle layer could add 50% CaCO3,and other filter with recycle material.
Main Technical Parameters:
MODEL | BSJ-ABA700 | BSJ-ABA900 | BSJ-ABA1100 | BSJ-ABA13500 | BSJ-ABA1700 |
| Suitable Material | LDPE LLDPE HDPE EVA BIOPLASTIC | ||||
| Max Film Width (mm) | 600 | 800 | 1000 | 1200 | 1500 |
Film Thickness (mm) | LD:0.02-0.15 HD:0.008-0.10 | ||||
Max EXtrusion Output | 60kg/h | 80kg/h | 90kg/h | 140kg/h | 200kg/h |
Gearbox | 133x1,146x1 | 173x1,146x1 | 173x2 | 173x2 | 200x2 |
Screw Diameter (mm) | φ45/50 | φ50/55 | φ55/60 | φ55/55 | φ65/65 |
Driving Motor (kw) | 11/15 | 15/18.5 | 15/18.5 | 18.5/18.5 | 22/22 |
Die Size (mm) | LD:Φ70 | LD:Φ80 | LD:Φ220 | LD:Φ250/300 | LD:Φ350/400 |
Cover Dimensions (L×W×H) (m) | 5.8x2.4x4.5 | 5.8x2.6x4.8 | 6x2.8x5.2 | 6.8x2.6x6.5 | 7.5x3.2x7.5 |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
