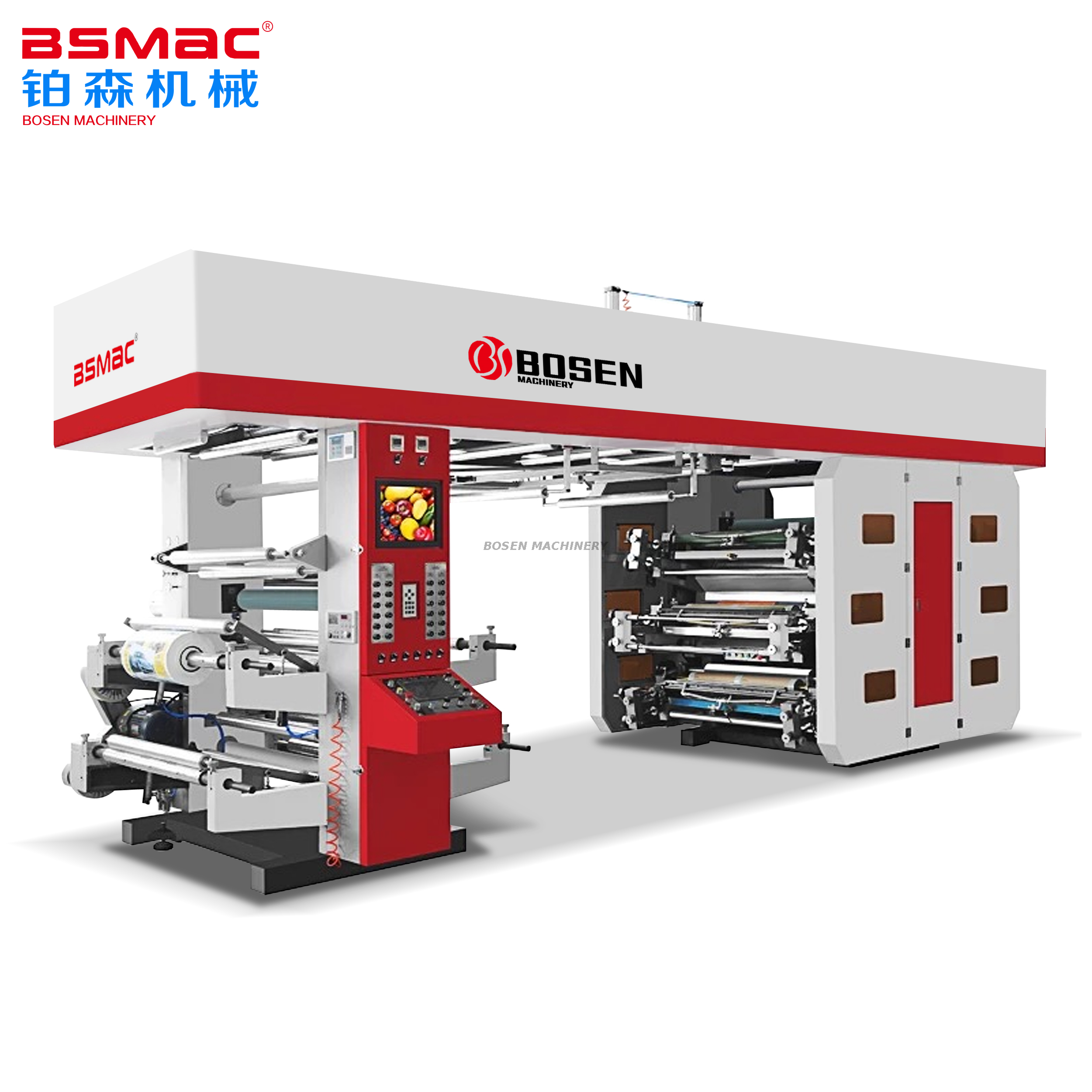

BSHCI6 Series High Speed Center Drum Flexographic Printing Machine

Availability:
Quantity:

Machine Features

1. servo gear drive system.

2. frequency conversion adjustable hot air drying system.

3. adopt digital electrical controlled color registeringadjustment system,achieve the vertical & horizontalcolor registering within 1 minute.

4. registering allowance+0.1mm the registering accuracywill not change during the speed-up or down.


The main technical parameters

Model

BSHCI6

BSHCI4

Printing Color

6 Colours

4 Colour5

Max Width of Material

1200mm

1200mm

Max Printing Width

1160mm

1160mm

Suitable Material

paper, film, plastic, non-woven, fabric, foils

paper, film, plastic, non-woven, fabric, foils

Max Printing Speed

250m/min

250m/min

Machine Weight

10000kg

8500kg

Machine Dimension(LxWxH)

9500x3600x3600mm

9500x3600x3000mm
Machine Power380V,3PH,50HZ380V,3PH,50HZ
