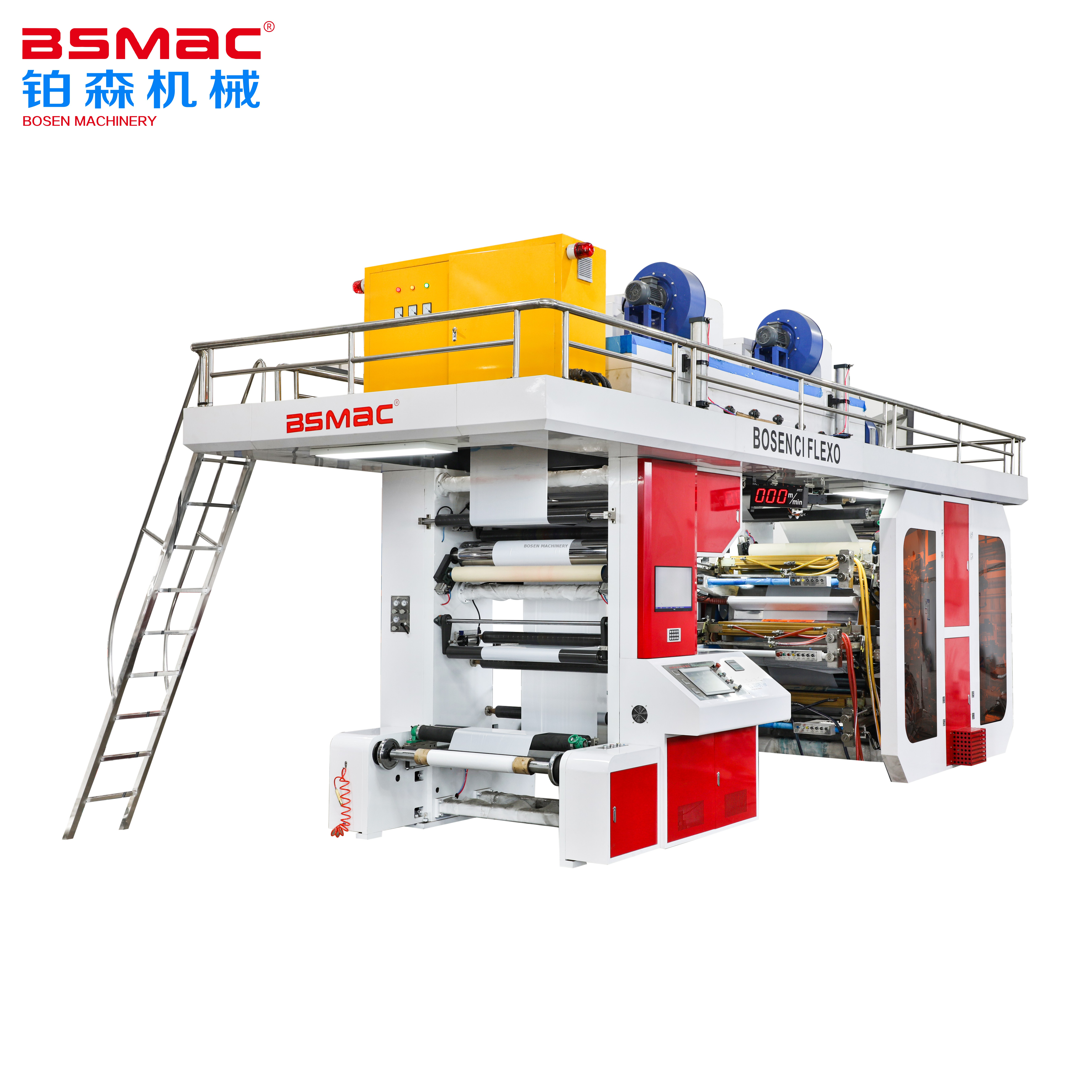

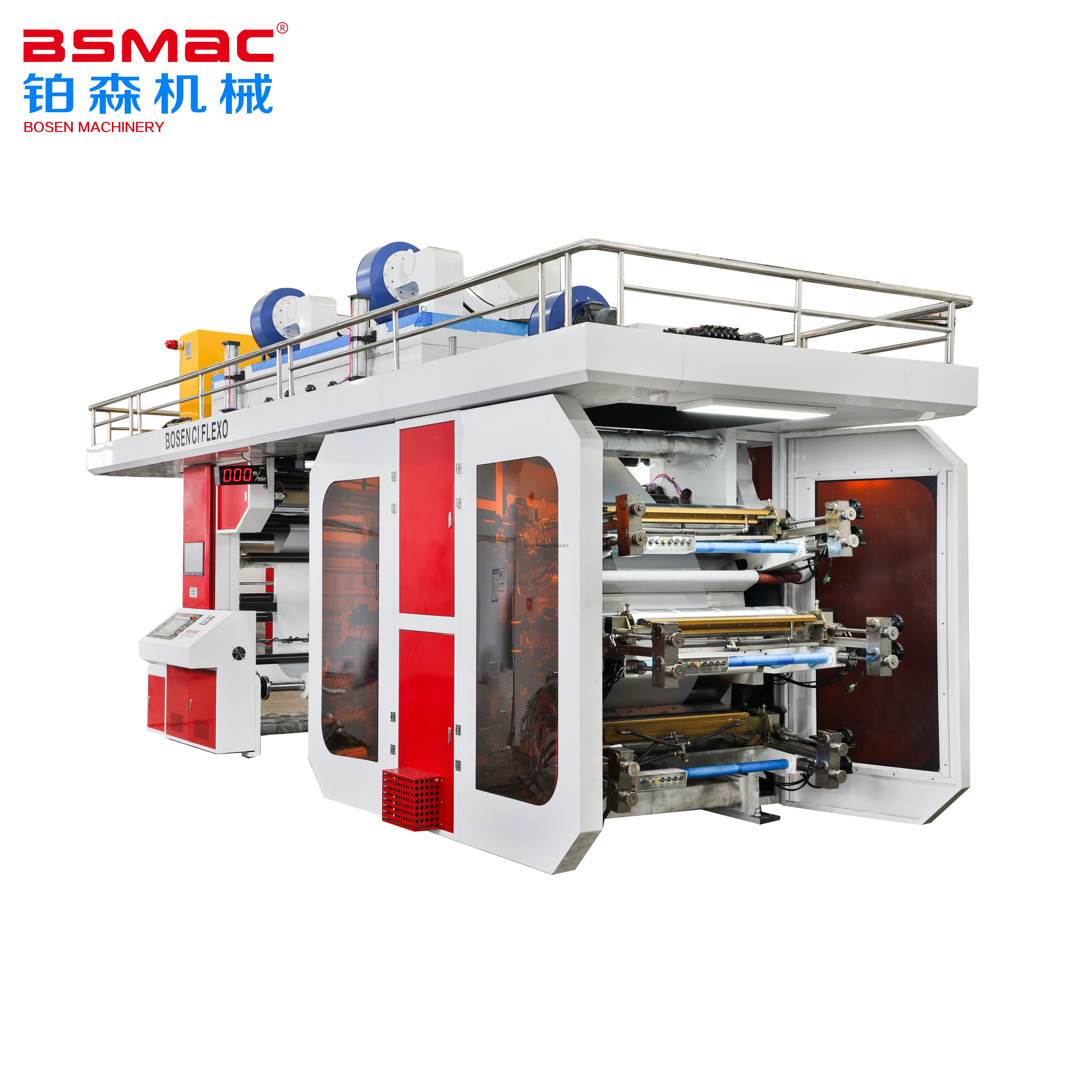

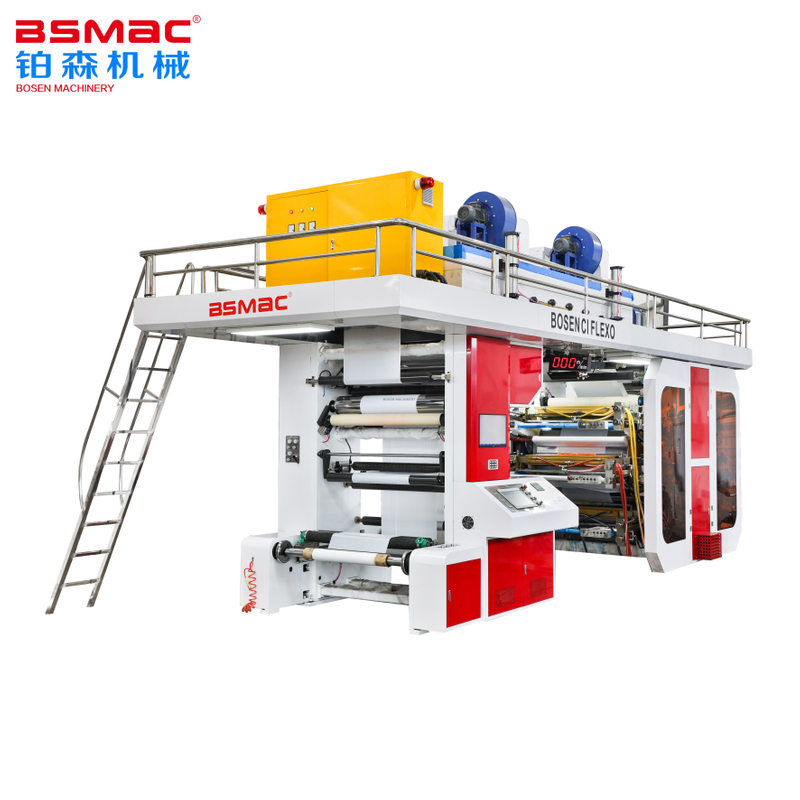

BSHCI 6 Color CI Center Large Roller Satellite Flexographic Printing Machine

CI big drum flexo printing machine, it is more higher regisitation on soft material printing product. It is very popular in the package printing machine area.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features

1.Servo gear drive system.
2.Frequency conversion adjustable hot air drying system.

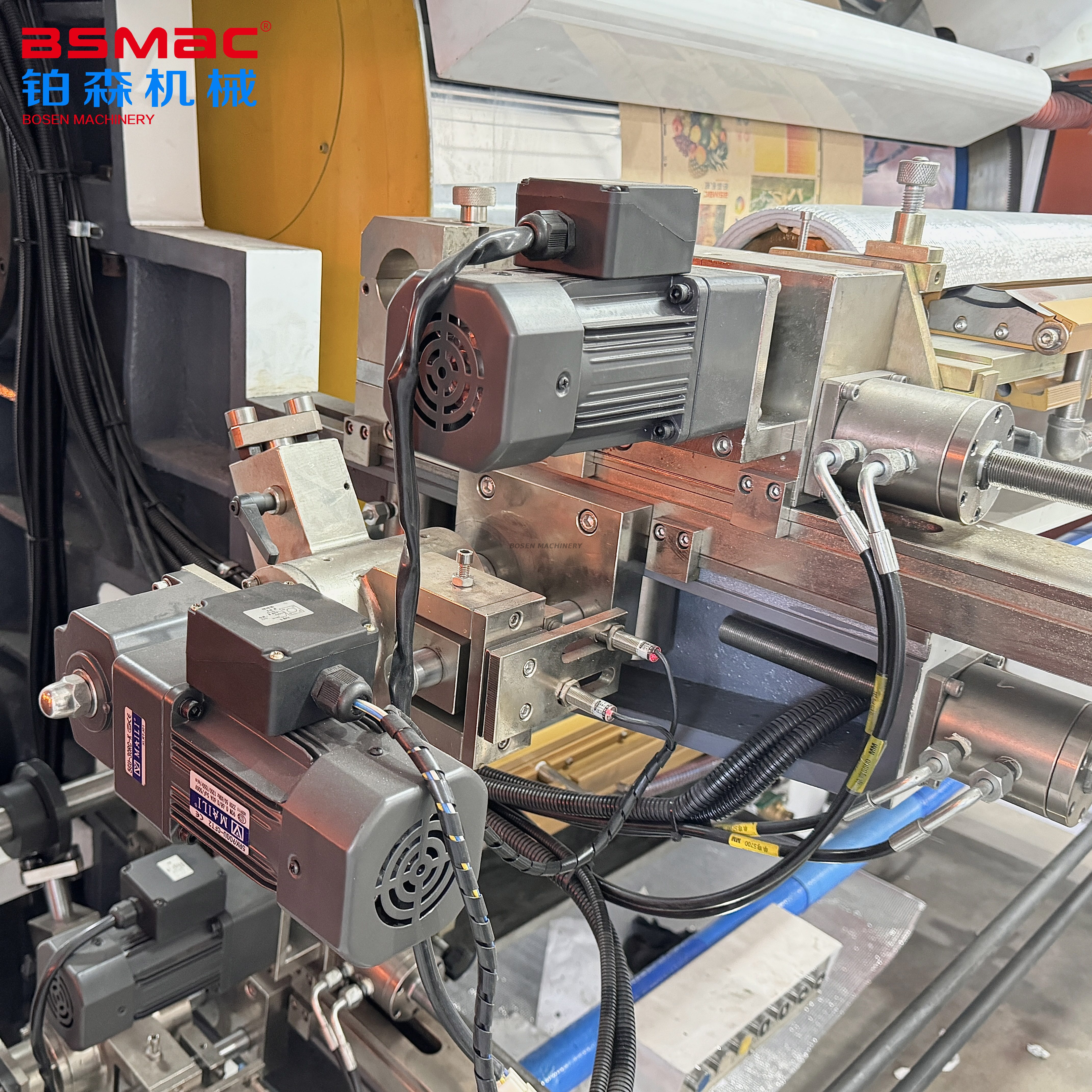

3.Adopt digital electrical controlled color registering adjustment system，achieve the vertical & horizontal color registering within 1 minute.

4.Registering allowance±0.1mm the registering accuracy will not change during the speed-up or down.

Main Technical Parameters:

The parameters below for reference, we accept customization

Model	BSHCI6
Printing Color	6 Colours
Max Width of Material	1200mm
Max Printing Width	1160mm
Suitable Material	paper, film, plastic, non-woven, fabric, foils
Max Printing Speed	250m/min
Machine Weight	15000kgs
Machine Dimension(L×W×H)	9500×3600×3600mm
Machine Power	380V, 3PH, 50HZ

High Speed Printing Machine Printer 6 colors High Speed Flexographic Printing Machine CI Flexo Printer Central Drum Flexographic Printing Machine CI Flexo printing machine Drum Printing machine High Speed Flexo Printing Machine 6 Colors Felxo Printing Machine

Focuses on the complete production line of plastic packaging and printing machinery R&D and manufacturing

Relying on innovative technology and rich experience, we have developed paper bag production line, high performance degradable plastic bag production line, green ink printing press production line and various non-woven bag, etc. With continuous r&d investment and experience accumulation, the products of platinum products have been widely recognized by users at home and abroad.
