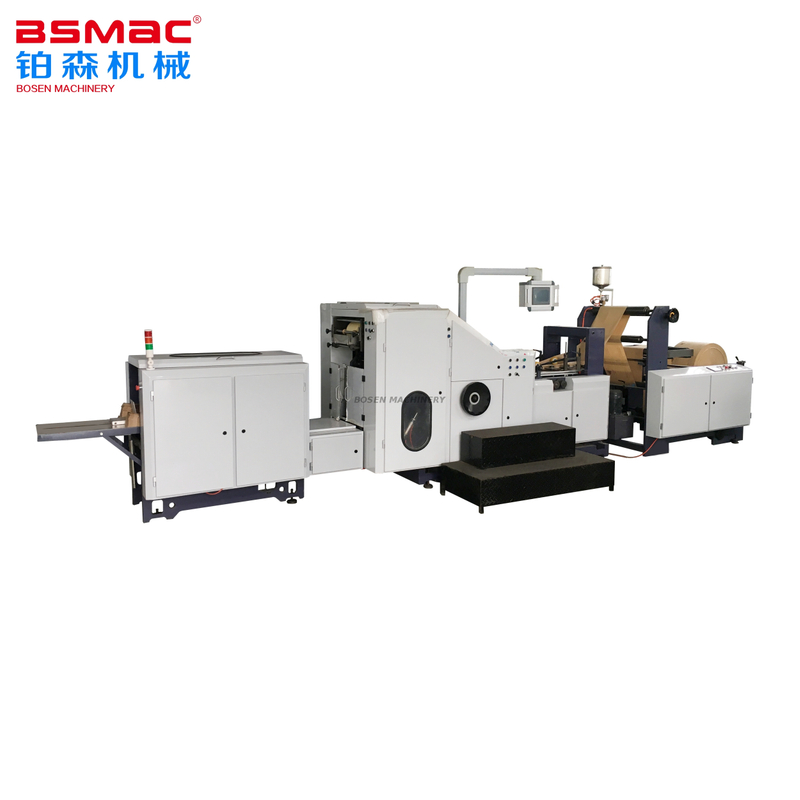

This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed, and can complete side gluing, tube forming, cutting, bottom impressing, bottom gluing bottom forming and final product output within one time. Controlled by PLC system, equipped with touch screen and servo motor for bag length control, this machine can produce various specifications paper bags, and it's an ideal equipment for making paper bag for foodstuff bag or shopping bag.
1.Using hydraulic lifting for material handing, and automatic tension control system for unwinding.
2.Center clip, drum wheel clamp and drum wheel machanical finger are all use spider synchronous adjustment mechanical design, which can significantly reduce the adjust ment time for replacing size.
3. Equipped with automatic lubrication supply system and jams alarm system.
The parameters below for reference, we accept customization
| MODEL | BSFD-180 | BSFD-290 | BSFD-460 |
| Paper bag width (mm） | 80-190 | 120-290 | 220-460 |
| Bag bottom size（mm） | 45-100 | 60-160 | 60-160 |
| Tube length（mm） | 191-371 | 260-533 | 260.4-533.4 |
| Max. roll paper width（mm） | 600 | 320-900 | 600-1300 |
| Bag making speed（pcs/min） | 200 | 200 | 180 |
| paper thickness（mm） | 45-120 mm | 60-150 gsm | 60-150 gsm |
| Max. paper roll diameter（mm） | 1300 | 1300 | 1300 |
| Main Motor （KVA） | 15 kva | 15 kw | 15 kw |
| Material core diameter (mm) | / | φ76 | φ76 |
| Air pressure（KPA） | 690 | / | / |
| Weight（kg） | 5000 | 8500 | 10000 |
| Dimension（mm） | 1600×9200×1750 | 8600×2500×1800 | 8600×3000×1800 |
