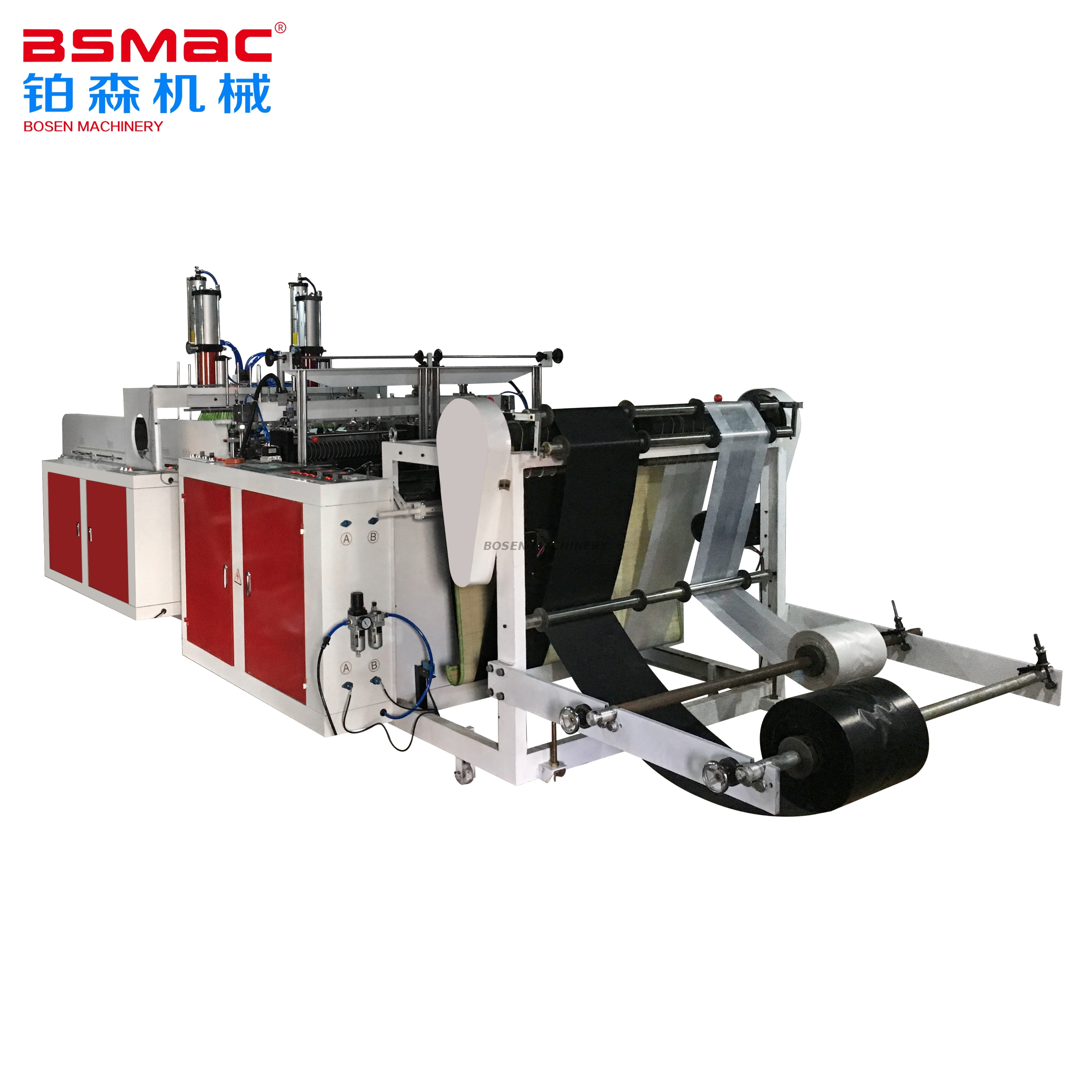

BSDFR Two Lines Hot Sealing Hot Cutting Plastic Bag Making Machine

Availability:
Quantity:

Main Technical Parameters:


ModelBS-DFR-400x2
BS-DFR-500x2BS-DFR-600x2
Max. Bag Making Width (mm)350x2450x2550x2
Max. Bag Making Width (mm)700800900
Bag Making Thickness (mm)0.005-0.12mm0.005-0.12mm0.005-0.12mm
Bag Making Speed (pce/min)(90-150)x2(90-150)x2(90-150)x2
Main Motor (kw)2.22.22.2
Stepper Motor350A350A350A
Unwind Motor300x2300x2300x2
Heater Power (kw)3.544
Air Compress (kg/m²)5

5

5
Weight (kg)800KG900KG1000KG
Mechanical Dimension (mm)2600x1800x1500mm2600x2000x1500mm2600x2150x1500mm

The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
