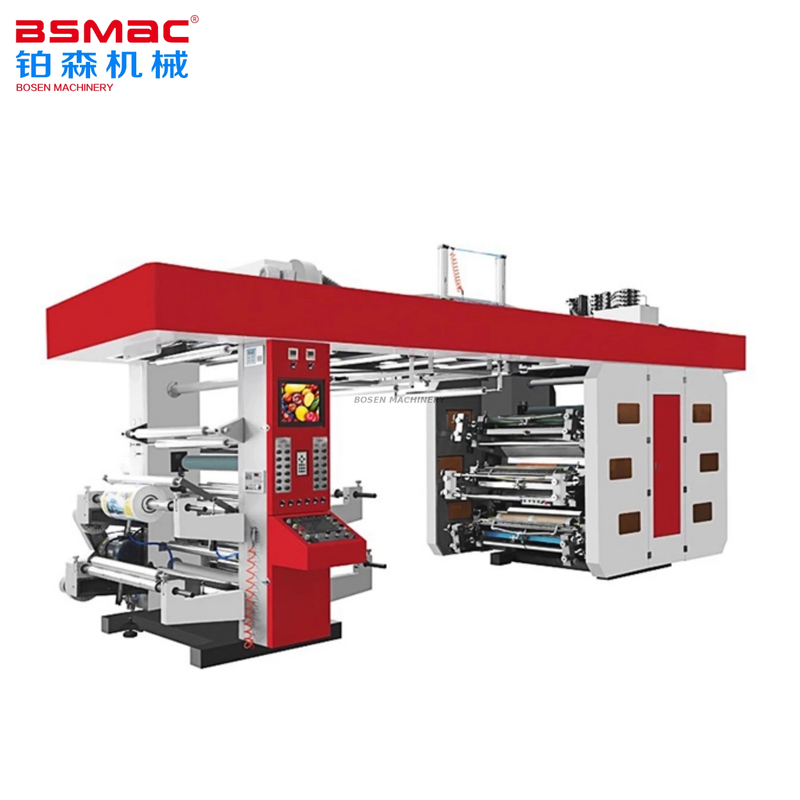

Product Description:
It has strong bearing capacity and stable and reliable tensile force.
Main Feature:
1. Easy operation, flexible starting, accurate color register
2. The meter couter can set printing quantity according to thr requirements.
Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with enven ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speed.
8. There are Inching/Stopping buttons on the plate roller base and material rolling rack,
so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
Main Technical Parameters:
The parameters below for reference, we accept customization
| Model | BSCI6-600 | BSCI6-800 | BSCI6-1000 |
| Max.Material Width(mm) | 600 | 800 | 1000 |
| Max.Printing width (mm) | 560 | 760 | 960 |
| Printing length | 191-1060mm, or customized | ||
| Print colors | 6 colors (also we have 1,2,4,8 colors for your choise ) | ||
| Mechanical speed | 200m/min | 200m/min | 200m/min |
| Printing speed | 180m/min | 180m/min | 180m/min |
| Diameter of material | Φ450 mm | ||
| Total Power | 30kw | 32kw | 34kw |
| Plate Thickness (including two sides glue paper) | 2.38mm, or customized | ||
| Machine Weight | 4500kg | 4800kg | 5000kg |
| Overall Dimensions | 4800×2000×3400mm | 4800X2200X3400mm | 4800×2400×3400mm |
| Working Voltage | 380V 3-phase 50Hz, or customied such as 220V, 410V, 440V | ||
