Product Description:

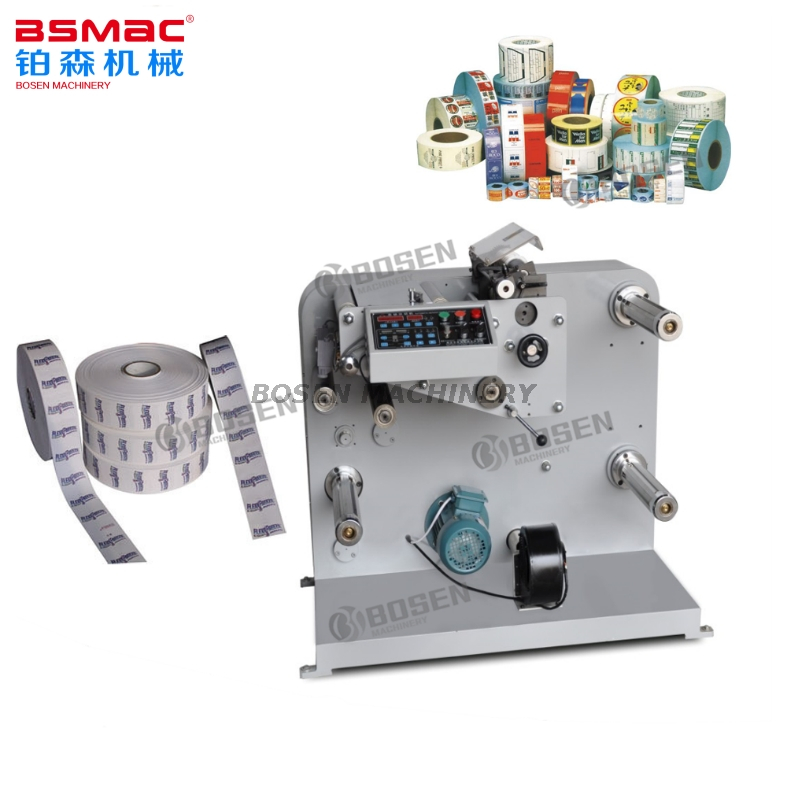

Small Label Slitting Machine id suit for narrow paper cutting and small label cutting.
Main Feature:
1. Function: automatic metering, counting, setting length and quantity, and automatic shutdown, etc
2. Unwinding controlled by photoelectric deviation rectifying controller(EPC System).
3. The overall structure is compact, fast, high efficiency, accurate cutting, simple and stable operation, etc.
Main Technical Parameters:
The parameters below for reference, we accept customization
| MODEL | BS-320 | BS-420 |
| Slitting Speed | 80m/min | 80m/min |
| Max. Width of Roll Paper | 320mm | 320mm |
| Max. Diameter of Unwinding | 500mm | 500mm |
| Max. Diameter of Rewinding | 500mm | 500mm |
| Slitting Precision | ±0.5mm | ±0.5mm |
| Weight | ≈600kg | ≈700kg |
| Motor | 1.5kw | 1.5kw |
| Dimension | 1100x1200x1280mm | 1100x1200x1280mm |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
Product Description:
Small Label Slitting Machine id suit for narrow paper cutting and small label cutting.
Main Feature:
1. Function: automatic metering, counting, setting length and quantity, and automatic shutdown, etc
2. Unwinding controlled by photoelectric deviation rectifying controller(EPC System).
3. The overall structure is compact, fast, high efficiency, accurate cutting, simple and stable operation, etc.
Main Technical Parameters:
The parameters below for reference, we accept customization
| MODEL | BS-320 | BS-420 |
| Slitting Speed | 80m/min | 80m/min |
| Max. Width of Roll Paper | 320mm | 320mm |
| Max. Diameter of Unwinding | 500mm | 500mm |
| Max. Diameter of Rewinding | 500mm | 500mm |
| Slitting Precision | ±0.5mm | ±0.5mm |
| Weight | ≈600kg | ≈700kg |
| Motor | 1.5kw | 1.5kw |
| Dimension | 1100x1200x1280mm | 1100x1200x1280mm |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
