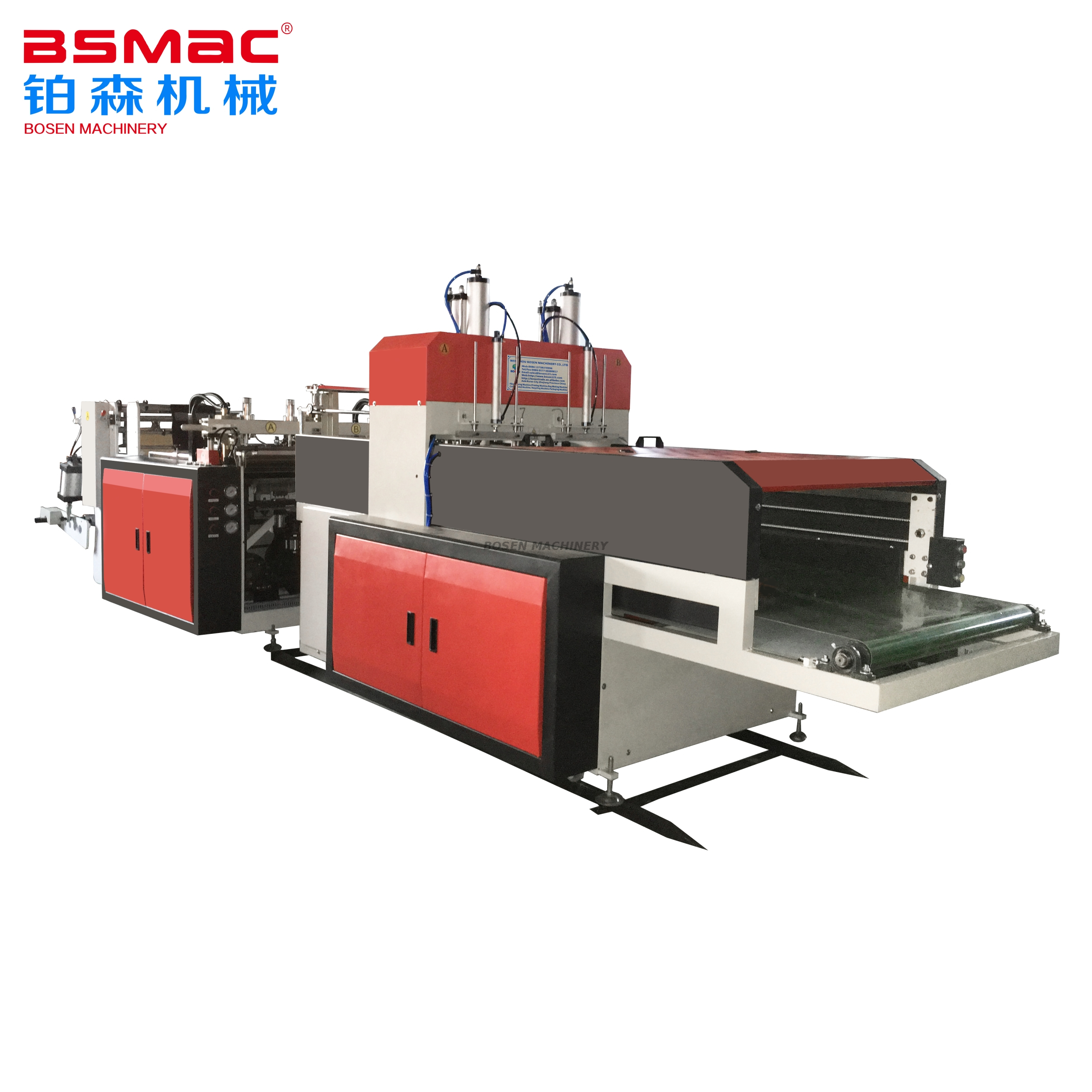

BS-H High Speed Heat-Sealing&Heat-Cutting Bag Making Machine

Used for making T-shirt bags, flat open bags, shopping bags,etc.
Availability:
Quantity:

Use:

Used for making T-shirt bags, flat open bags, shopping bags,etc.

Main Feature:

Sealing and cutting synchronization, no tension,bottom seal fastness and beautiful product. Automatic discharge, automatic reset.

High speed model with PLC touch screen and dancing roller in feeding material unwinding part,and 5 inverter motor system

Main Technical Parameters:

Model

BS-H400x2BS-H450x2BS-H500x2

Max. Bag Making Width (mm)

350x2 lines (370)

400x2 lines (420)450x2 lines (470)
Max. Bag Making Length (mm)

600

600600
Bag Making Thickness (mm)
0.005-0.100.005-0.100.005-0.10

Bag Making Speed (pcs/min)

(180-250)x2(180-250)x2(180-250)x2
Main Motor (kw)2.22.22.2
Weight (kg)

2300

24002500

Dimension (LxWxH)

7000x1700x1800

7000x1800x18007000x1900x1800


The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
