Product Description:

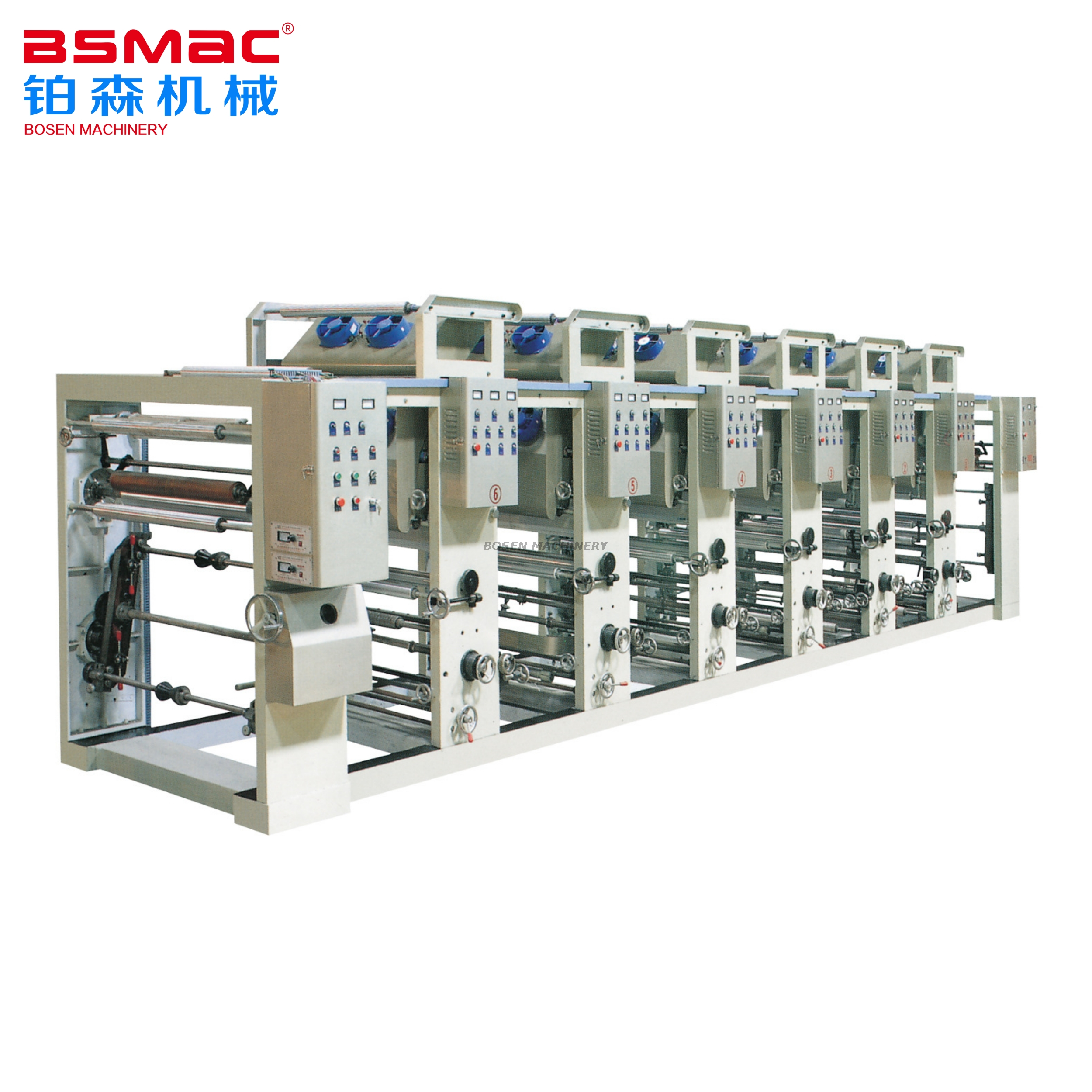

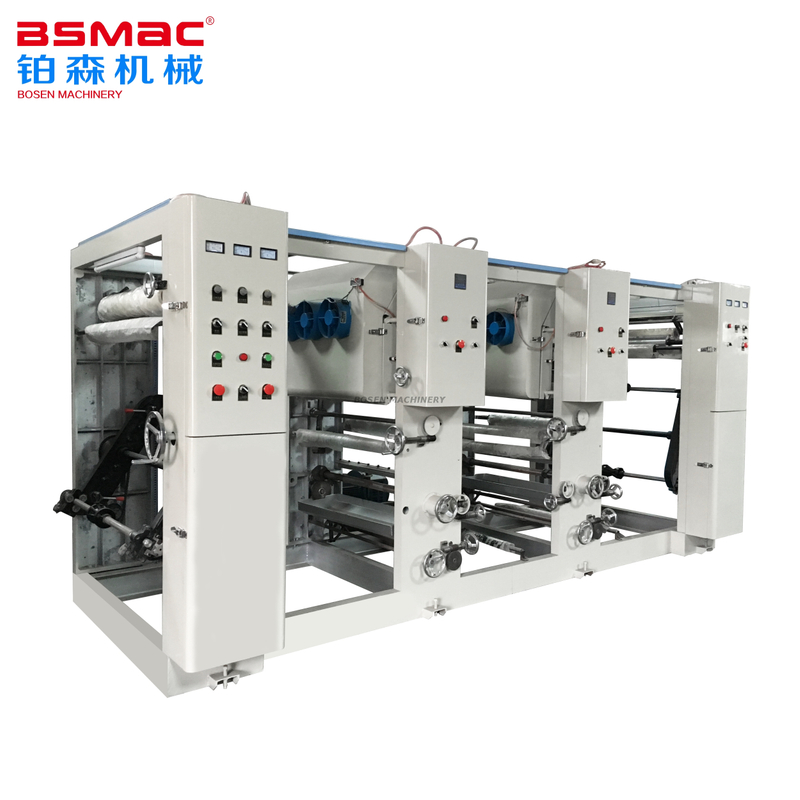

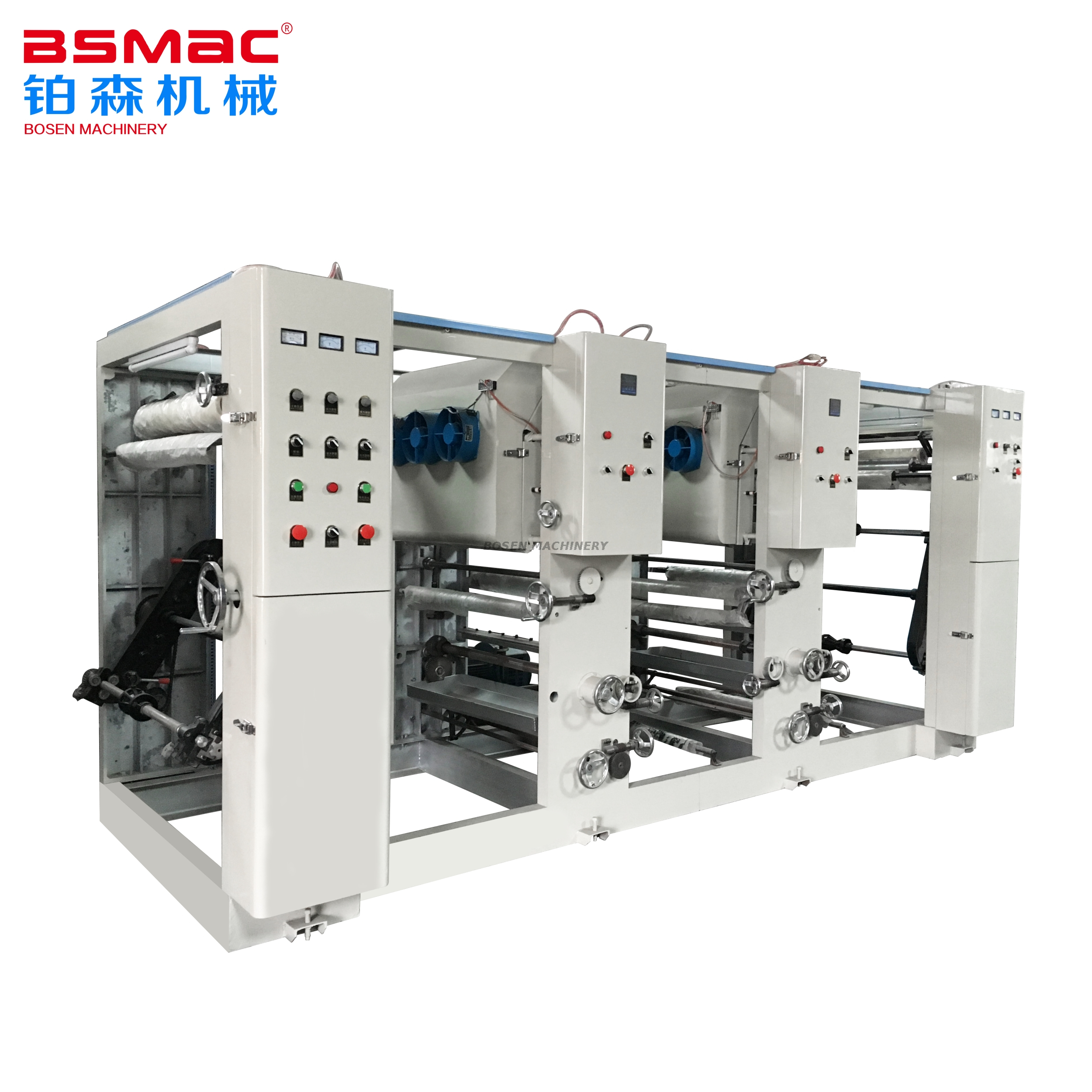

This machine set is suitable for continuously printing such packing products ad variors plastic film, currency, cloth and thin leather,etc.
Main Feature:
1. Printing of one side or two sides can be finished through once operation.
2. The register sets of 360° can make the color registration, which will not influence the reaction of film.
3. Equipped with far infrared tube drying unit, this machine set can dry bags up to 50m/min.
4. It can print clear and exquisite image, model 1-8colour machines can be chosen at will.
Main Technical Parameters:
Model | BS ASY-600 | BS ASY-800 | BS ASY-1000 |
Diameter of Roll Marerial | 600mm | 600mm | 600mm |
Printing diameter | 240-850mm | 240-850mm | 240-850mm |
Printing width | 600mm | 800mm | 1000mm |
Unwinder diameter | 600mm | 600mm | 600mm |
Rewinder diameter | 600mm | 600mm | 600mm |
Printing speed | 50-60 m/min | 50-60 m/min | 50-60 m/min |
Mechanical speed | 70-80 m/min | 70-80 m/min | 70-80 m/min |
Register precision | ±0.25mm | ±0.25mm | ±0.25mm |
Printing Plate Lifting System | Manual Operation | ||
Heating Method | Electric Heating | ||
Heating Power | 3.2kw | 3.2kw | 3.2kw |
Toatal Power | 22kw | 25kw | 28kw |
Weight | 3500KG | 3800KG | 4000KG |
Dimension(L×W×H) | 8800×1400×2400mm | 8800×1600×2400mm | 8800×1800×2400mm |
The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
