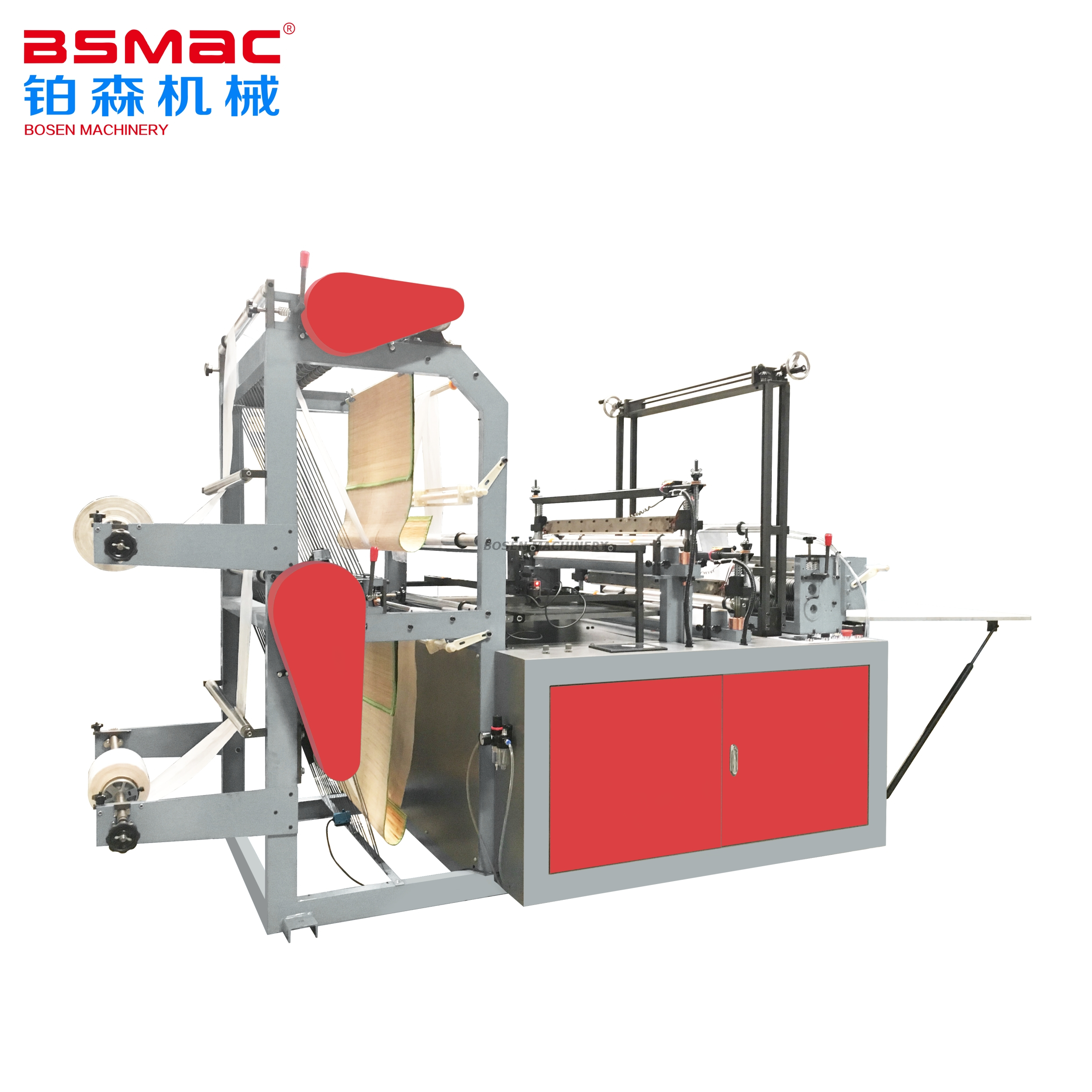

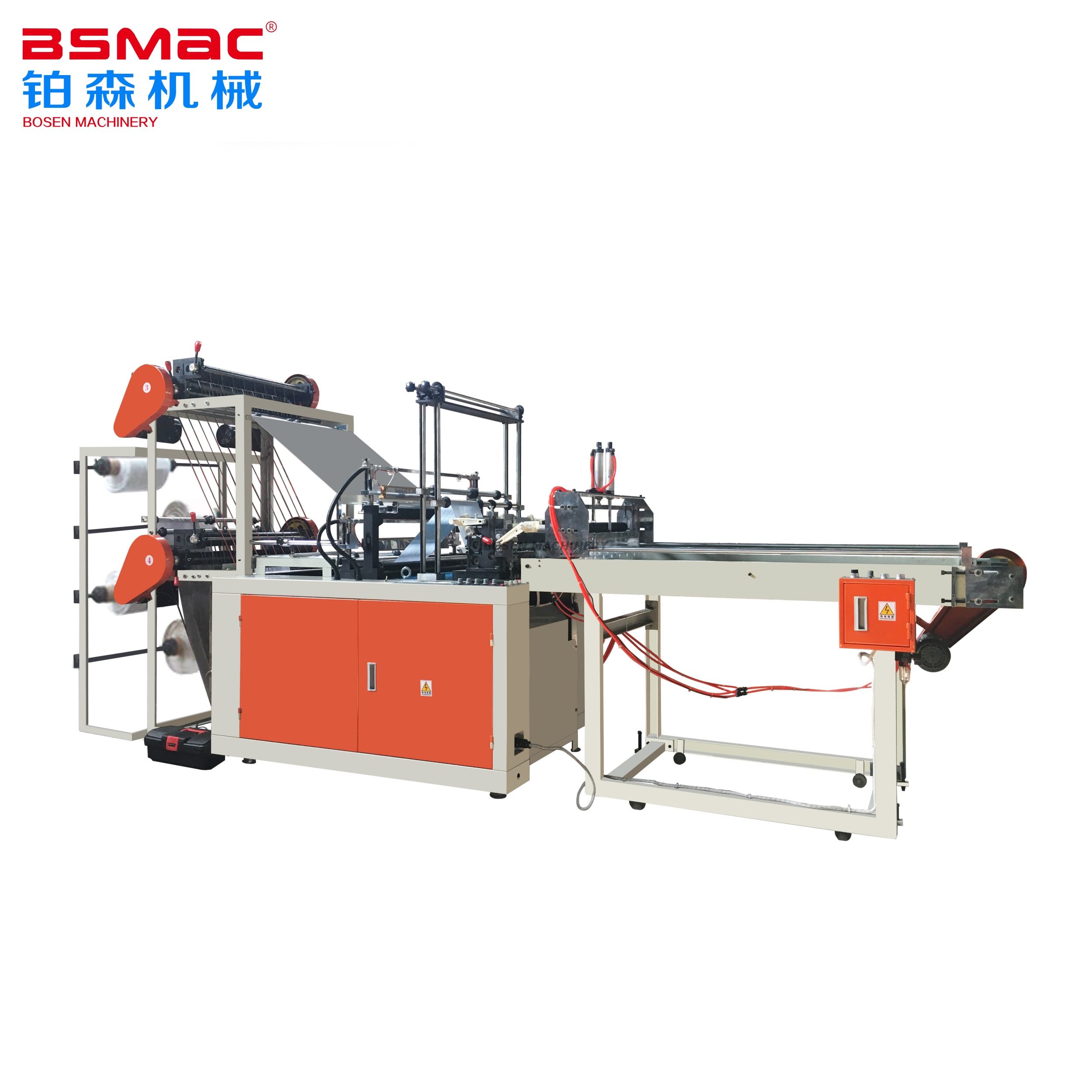

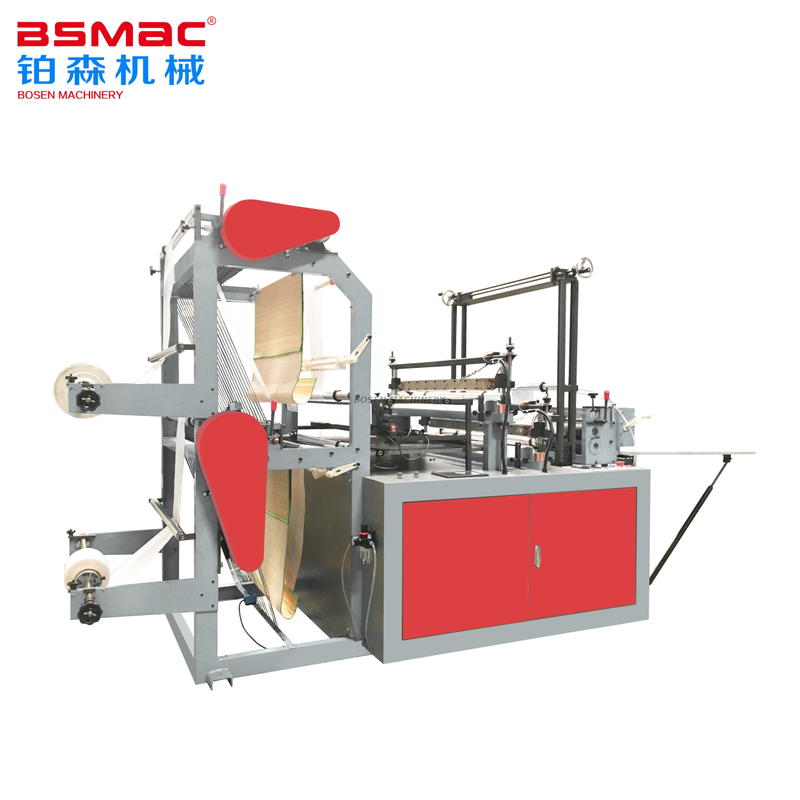

BS-4LQ Heat-Sealing&Cold-Cutting Bag Making Machine

This machine is applies to automatically making flat bags , D handle bag and vest bags with the materials like LDPE,HDPE and PP bag.
Availability:
Quantity:

Product Description:

This machine is applies to automatically making flat bags , D handle bag and vest bags with the materials like LDPE,HDPE and PP bag.

Main Technical Parameters:

Model

BS-4LQ-E600BS-4LQ-E700BS-4LQ-E800

Max. Bag Making Width (mm)

550

650750
Max. Bag Making Length (mm)

1200

12001200

Bag Making Speed (pcs/min)

(50-120)x4(50-120)x4(50-120)x4
Main Motor (kw)1.51.51.5
Stepper Motor
350C350C350C
Unwind Motor (w)400x4400x4400x4
Heater Power (kw)3.23.43.6
Weight (kg)

700

800900

Air Compress (kg/m²)

5

55

The parameters below for reference, we accept customization.The appearance and technical parameters of the machine are subject to change without prior notice.
